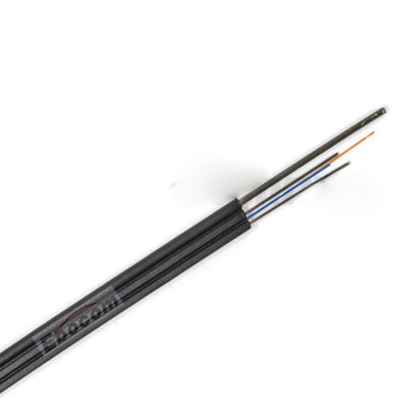

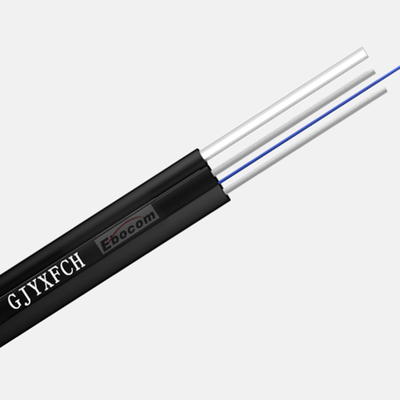

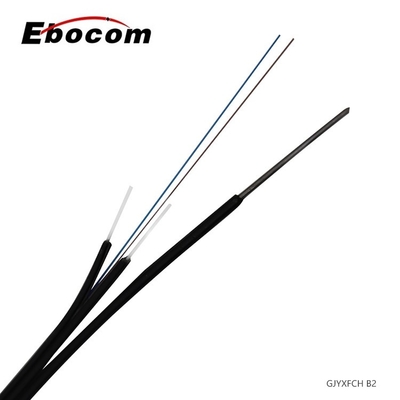

Indoor and Outdoor FTTH Optical Fiber Flat Drop Cable
| Place of Origin | Shandong，China |
|---|---|
| Brand Name | EBOCOM |
| Certification | ISO TLC |
| Model Number | GJYXCH 2B1 |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.014/M ≥5000m $0.012/M |
| Packaging Details | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 5-8 day |
| Payment Terms | T/T |
| Supply Ability | 50000KMS/day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | GJYXFCH/GJYXCH FTTH Drop Cable | Fiber Type | SM/MM |
|---|---|---|---|
| Product Brand | Ebocom Or OEM | Cable Diameter | 2.0*3.0mm |
| Operating Temperature | -40ºC~70ºC | Loose Tube | None |
Product Description
The drop cable is located on the client side and is used to connect the terminal that distributes the cable to the user’s house. They are typically small diameter, low fiber count cables with limited unsupported span length and can be installed overhead, underground or buried. Due to outdoor use, according to industry standards, the minimum pulling force of the lead-in cable should be 1335 Newtons. There are many different types of drop cables, the common models are GJXH,GJYXFCH,GJYXCH, etc.
Drop Cable Features:
Good mechanical and environmental characteristics;
Flame retardant properties in line with relevant standards;
Mechanical characteristics meet the requirements of relevant standards;
Soft, flexible, easy to splice, large capacity data transmission;
To meet the needs of the market and customers.
Drop Cable Application:
Outdoor aerial application
Used in the FTTH projects
High speed optical routes in building
Technical parameters:
| Cable type | OD(mm) | Nominal Weight(kg/km) | tensile strength(N) | Crush Resistance(N/100MM) | Bending Radius(mm) | |||
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static | |||
| GJYXFCH-1Xn | (2.0±0.2)*( 5±0.2) | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| GJYXFCH-2Xn | (2.0±0.2)*( 5±0.2) | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| GJYXFCH-3Xn | (2.0±0.2)*( 5±0.2) | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| GJYXFCH-4Xn | (2.0±0.2)*( 5±0.2) | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
| Storage/Working temperature(ºC) | -20~+70 | |||||||
