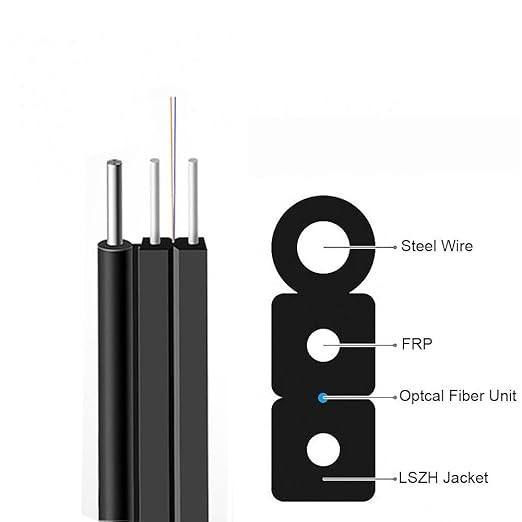

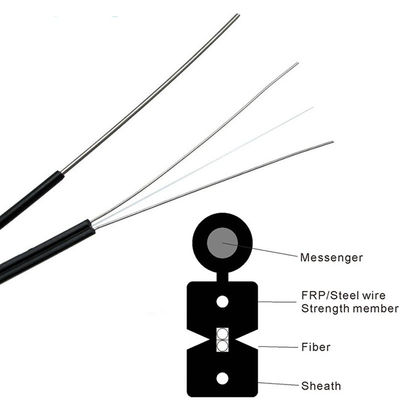

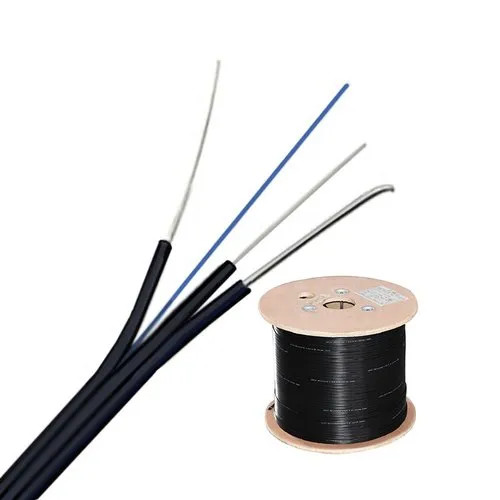

Outdoor FTTH Drop Cable 2 Core SM G657A1 Fiber LSZH Jacket With Steel Wire FRP Strength Member
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Temperature Range | -40°C To +70°C | Type | Outdoor FiTTH Drop Cable |
|---|---|---|---|
| Outer Jacket | LSZH | Packing Length | 1km/drum, 2km/Drum |
| Strength Member | Steel Wire/FRP | Installation Method | Self-supporting |
| Item | FTTH Indoor Cable | Trademark | OEM |
| Self Supporting Wire | 0.8/1.0mm Steel Wire | ||
| Highlight | 2 Core FTTH Drop Cable,LSZH Jacket FTTH Drop Cable,Outdoor FTTH Drop Cable |
||
Product Description
## Product Description
Introducing our Outdoor FTTH Drop Cable, designed for Fiber-to-the-Home (FTTH) applications. This 2 Core SM G657A1 Fiber cable is built for outdoor use, offering excellent durability and performance in harsh environments. The Low Smoke Zero Halogen (LSZH) Jacket ensures fire safety, making it an ideal choice for both residential and commercial installations. With superior flexibility and bend performance, this cable is perfect for last-mile fiber connections in FTTH networks.
## Key Features:
- 2 Core SM G657A1 Fiber: Provides excellent transmission quality with low attenuation, perfect for high-speed data transmission over long distances.
- Outdoor Design: Specifically designed for outdoor environments, offering UV resistance and protection against harsh weather conditions.
- LSZH Jacket: The Low Smoke Zero Halogen (LSZH) jacket ensures safety, minimizing the emission of harmful gases in case of fire.
- Superior Bend Performance: The G657A1 fiber allows for tight bending without compromising signal integrity, making it ideal for complex installations and tight spaces.
- Lightweight and Flexible: Easy to install in FTTH networks, especially for the last-mile connection from utility poles to homes or buildings.
## Applications:
- Fiber-to-the-Home (FTTH) and Fiber-to-the-Building (FTTB) installations
- Last-mile fiber connections for residential and commercial projects
- Outdoor aerial and duct installations
- High-speed data transmission in telecommunication networks
## Technical Specifications:
| Specification | Details |
| Product Name | Outdoor FTTH Drop Cable |
| Fiber Type | Single Mode (SM)G657A1 |
| Core Count | 2 Core |
| Outer Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Cable Design | Flat or round,outdoor drop cable |
| Tensile Strength | Up to 500 N |
| Minimum Bending Radius | 20 mm |
| Operating Temperature Range | -40℃ to+70℃ |
| Attenuation at 1310nm | ≤0.35 dB/km |
| Attenuation at 1550nm | ≤0.20 dB/km |
| Cable Diameter | 2*5mm or customized based on specific project requirements |
| Sheath Color | Black (customizable upon request) |
## Advantages of Our FTTH Drop Cable:
1. High Performance: The G657A1 single-mode fiber ensures low attenuation and high-speed data transmission, ideal for FTTH networks.
2. Safety and Durability: The LSZH jacket ensures fire safety, making it a safer option for both indoor and outdoor installations.
3. Easy Installation: Lightweight and flexible, the 2 core drop cable is easy to deploy for last-mile connections from the utility pole to buildings or homes.
4. Resistant to Harsh Environments: Built to withstand UV exposure, temperature changes, and other outdoor challenges.
5. Cost-Effective: Ideal for large-scale FTTH network rollouts, providing reliable performance with minimal maintenance.
## Why Choose Us?
- Professional Manufacturer: We are a leading fiber optic cable manufacturer with extensive experience in the industry.
- OEM/ODM Services: We offer customization options for specific project needs, including core count, jacket material, and cable length.
- Global Shipping: We provide fast and reliable shipping, ensuring that your products are delivered on time, anywhere in the world.
