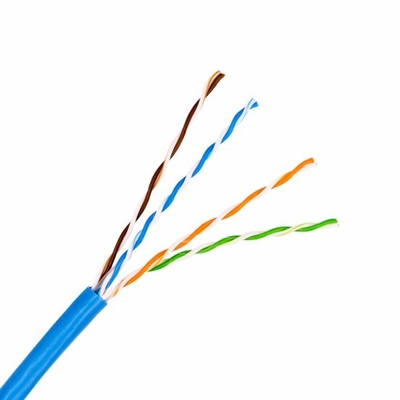

CAT5E CAT6 Network Cable UTP 24AWG Copper Conductor for Ethernet ports data transmission

Place of Origin Shandong,China
Brand Name EBOCOM
Certification ISO TLC
Minimum Order Quantity 3050m
Price EXW ≥3050m $0.2/M ≥6010m $0.19/M
Packaging Details 305m/box,4boxes/carton,
Delivery Time 5-8 day
Payment Terms T/T
Supply Ability 5000KMS/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Minimum Order Quantity 3050m Packaging Details 305m/box
Delivery Time 7-15 Work Days Payment Terms L/C, T/T, Western Union
Place Of Origin Shandong ,China Brand Name Ebocom /OEM
Certification ISO9001,ISO45001,ISO14001 Model Number Cat5e Cable
Copper Conductor 0.48/0.5/0.52 Diameter 0.4-0.6mm
Highlight

Ethernet Ports Network Cable

,

UTP Network Cable

,

24AWG Network Cable

Leave a Message
Product Description

Product introduction:

Ethernet cables are a type of network cable like cats cat5e cat6 cat6e different types,which are used to work with Ethernet
ports to achieve hardwiring devices.And bring faster internet and more reliable connectivity.

CAT5E CAT6 Network Cable UTP 24AWG Copper Conductor for Ethernet ports data transmission 0

Cat5e UTP patch cable features 24AWG unshielded twisted pair stranded copper cable with a high performance modular plug at each end. Snagless design protects the locking clips on the RJ45 connectors from being damaged or snapped off during installation.
It exceeds the performance of the Cat5e Ethernet network cable standard and offers the cost-effective solution for indoor Gigabit Ethernet data center applications, supporting up to 1000Mbps and 250MHz within 100 meters of cable. Stranded copper patch cable can be used with a longer flex-life. The cable supports PoE to save you the expense and effort of powering PoE devices individually. You can also install PoE devices in locations distant from power outlets, such as high on walls, ceilings or poles.

Specifications
Cable Type
Cat5e Snagless
Shielding Type
Unshielded (UTP)
Cable Jacket
PVC CM (Round)
Length
5ft (1.5m) (Including Plugs)
Data Rate Support
10/100/1000Base-T
Maximum (Tested) Frequency
250MHz
Conductor Type
Stranded Pure Bare Copper
Connectors
RJ45 (Male)
Gauge (AWG)
24 (7/0.20mm)
Cable Outer Diameter (mm)
5.5± 0.4
PoE Compatibility
PoE/PoE+/PoE++
Wire Scheme
T568B, Straight
Operating Temperature
-20 to +75°C (-4 to 167°F)
Installation Temperature
-10 to +50°C (14 to 122°F)
