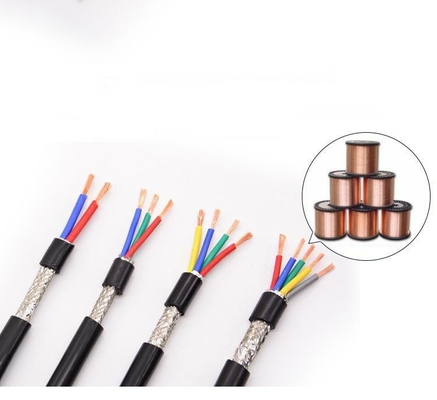

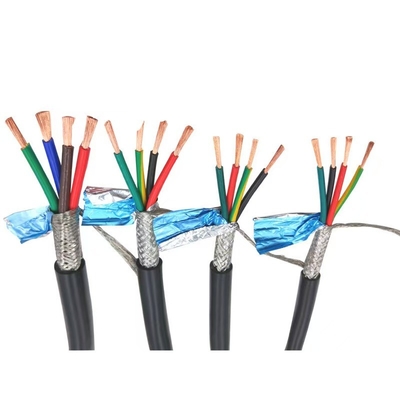

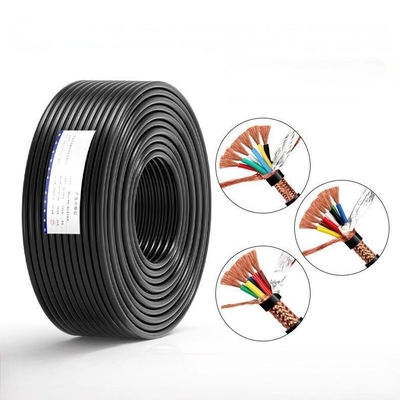

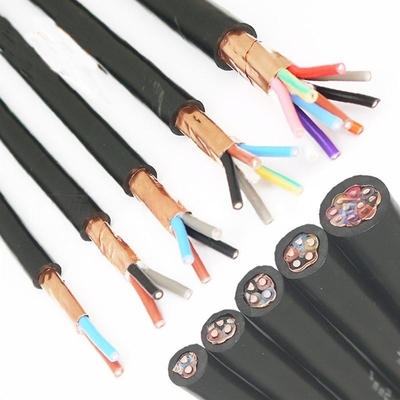

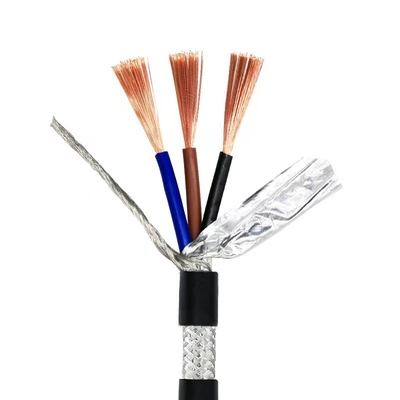

Shielded RVVP Electrical Cable Multi Core Copper Control Cable with Braided Shielding
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shielding | Aluminum Mylar Tape/Braid | Jacket Material | PVC |
|---|---|---|---|
| Application | Power And Control Systems | Number Of Conductors | 2-50 |
| Insulation Material | PVC | Color | Black |
| Voltage Rating | 300/500V | Length | Customizable |
| Conductor Material | Pure Oxygen-free Copper | ||
| Highlight | Multi Core RVVP Electrical Cable,Copper Control RVVP Electrical Cable,Braided Shielding RVVP Electrical Cable |
||
Product Description
Product Description

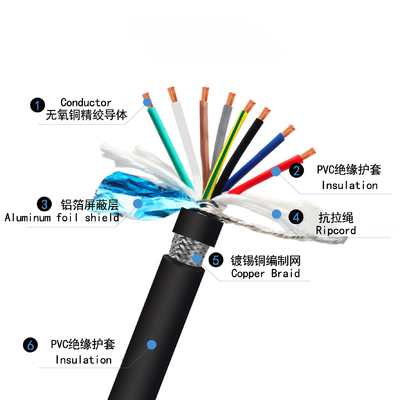

The RVVP Shielded Electrical Cable is a premium multi-core copper cable designed for stable signal transmission and power supply in complex environments. It features oxygen-free copper conductors, PVC insulation, and a tightly woven copper braid for excellent shielding against electromagnetic interference (EMI).
With its high flexibility and enhanced mechanical strength, the RVVP cable is ideal for control circuits, automation systems, communication networks, and security systems. The braided shield provides superior signal integrity, making it suitable for sensitive electronic equipment and long-distance installations.
Applications
-Industrial Automation: Ensures stable control and signal transmission for automated machinery and equipment.
-Security and Surveillance: Ideal for CCTV, alarm systems, and access control networks.
-Communication Systems: Provides reliable signal transmission for intercoms, PA systems, and audio equipment.
-Building Wiring: Suitable for both residential and commercial power and control installations.
-Power Supply: Supports low-voltage power distribution and control signals.
-Smart Home and IoT: Used for home automation systems and smart network setups.
Key Features
1. Superior Shielding and Signal Integrity
-
Copper braided shielding effectively blocks electromagnetic interference (EMI) and crosstalk.
-
Ensures clear and stable signal transmission, even in high-interference environments.
2. High-Performance Conductors
-
Oxygen-free copper conductors provide excellent electrical conductivity and low signal loss.
-
Suitable for both low and high-frequency signal transmission.
3. Enhanced Mechanical Strength
-
PVC insulation and copper braid increase the cable's tensile strength and durability.
-
Resistant to bending, twisting, and mechanical wear.
4. Flexible and Easy to Handle
-
Soft and lightweight construction for easy installation.
-
Flexible enough to handle tight corners and complex routing.
5. Fire and Environmental Protection
-
Flame-retardant and resistant to moisture, oil, and chemicals.
-
Low Smoke Zero Halogen (LSZH) options available for increased fire safety and reduced toxic emissions.
Technical Specifications
| Parameter | Details |
|---|---|
| Conductor Material | Oxygen-Free Copper |
| Conductor Size | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
| Core Count | 2-core, 3-core, 4-core, 5-core |
| Rated Voltage | 300V / 500V |
| Shielding Type | Copper Braided Shield |
| Insulation Material | PVC |
| Sheath Material | PVC / LSZH (Optional) |
| Flame Retardant Standard | IEC 60332-1 |
| Operating Temperature | -20°C to +70°C |
| Bending Radius | ≥8 times the cable diameter |
| Packaging | Roll, Reel, or Box |
Available Configurations
| Core Count | Conductor Size | Rated Voltage | Outer Diameter | Shield Type | Weight (Approx.) |
|---|---|---|---|---|---|
| 2-core | 0.5mm² | 300V/500V | 5.8mm | Copper Braid | 45kg/km |
| 3-core | 0.75mm² | 300V/500V | 6.5mm | Copper Braid | 60kg/km |
| 4-core | 1.0mm² | 300V/500V | 7.5mm | Copper Braid | 75kg/km |
| 5-core | 1.5mm² | 300V/500V | 8.5mm | Copper Braid | 90kg/km |
| 2-core | 2.5mm² | 300V/500V | 10.0mm | Copper Braid | 120kg/km |
Why Choose Our RVVP Cables?
1. Experienced Manufacturer: Over 10 years of expertise in producing premium electrical cables.
2. Certified Quality: Our products meet international standards, including ISO.
3. Fast and Reliable Delivery: We ensure short production cycles and fast shipping.
4. OEM/ODM Support: Custom branding and specifications available to meet customer needs.
5. Competitive Pricing: Direct factory pricing for better value and higher profit margins.
FAQ
1. What is the main advantage of RVVP cables over RVV cables?
-
RVVP cables have a copper braid shield that protects against EMI, making them more suitable for sensitive signal transmission and high-noise environments.
2. Can RVVP cables be used outdoors?
-
Yes, RVVP cables are resistant to moisture and UV, making them suitable for outdoor use when properly protected.
3. Are custom configurations available?
-
Yes! We offer OEM and ODM services for different conductor sizes, shielding types, and sheath materials.
