RVVP Cable Multi-Core Signal Wire 0.3mm2 0.5mm2 1mm2 1.5mm2 2.5mm2 4mm2 4 Core
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | RVVP Cable | Conductor Material | PVC |
|---|---|---|---|
| Insulation Material | PVC | Color | Black |
| Type | Low Voltage | Minimum Order Quantity | 100M |
| Brand Name | Ebocom /OEM | Payment Terms | L/C, T/T, |
| Certification | ISO9001,ISO45001,ISO14001 | Place Of Origin | Shandong ,China |
| Highlight | 0.3mm2 RVVP Cable |
||
Product Description
Product introduction:

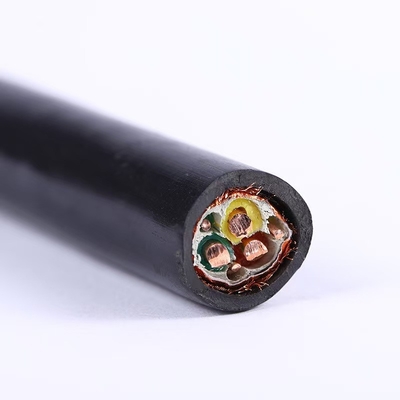

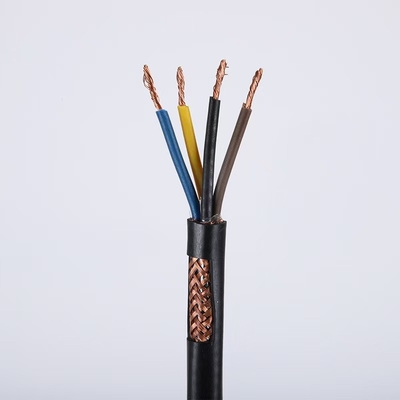

RVVP named shielded flexible cable, according to the commonly used model can be divided into RVV and P. RVV copper core PVC sheathed flexible cable, and "P" means shielding, that is, basically adding a shielding layer to the RVV flexible wire, the anti-interference performance has been significantly improved, mainly to resist external signal interference. It is suitable for communication, audio, audio and microphone cable with rated voltage of 300 amp 500V and below. It has the effect of resisting external signal interference.
Characteristics of RVVP Cable:
Rated Voltage: 300/500V
Conductor: Class 5 Conductor
Insulation: PVC
Shielded Layer: Tinned Copper or Pure Copper
Sheath: PVC
Test Voltage:2000V,5min
Insulation resistance:>20M • Ω *Km
Operating temp.(static):-30~70 ℃
Operating temp.(flexing): -5~70 ℃
Bending Radius:15×O.D.
Flame retardance:IEC 60 332.1
Norminal cross section size of conductor: 0.5mm2, 1mm2 1.5mm2, 2.5mm2, 4mm2, 6mm2, 10mm2, 16mm2, 25mm2
Cores available: 2 cores-24 cores.
Application
This product applies to electrical appliances, instrument and telecommunication device with rated voltage up to and including 300/500V. Maximum temperature allowance when the cables are for long term use: temperature shall not exceed 70°C.
