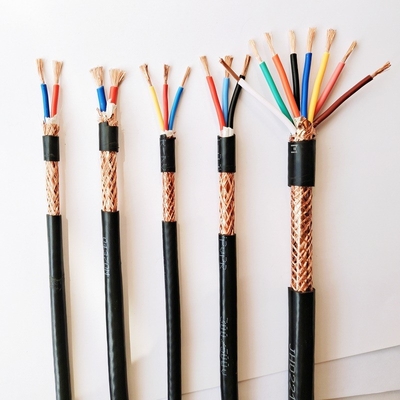

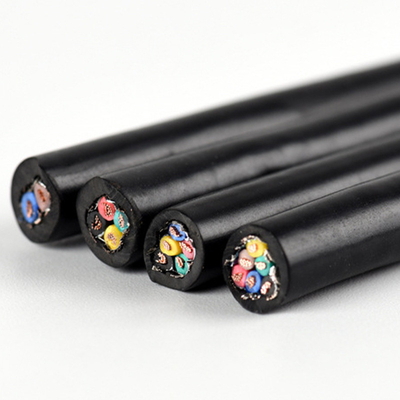

RVVP 0.3mm²~2.5mm² Double Shielded Flex Cable 2~6 Cores Security Signal Cables
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | RVVP Cable | Conductor Material | PVC |
|---|---|---|---|
| Insulation Material | PVC | Color | Black |
| Type | Low Voltage | Minimum Order Quantity | 100M |
| Brand Name | Ebocom /OEM | Payment Terms | L/C, T/T, |
| Certification | ISO9001,ISO45001,ISO14001 | Place Of Origin | Shandong ,China |
| Highlight | 2.5mm² Double Shielded Flex Cable,RVVP Double Shielded Flex Cable,6 Cores Double Shielded Flex Cable |
||
Product Description
Product introduction:
RVVP named shielded flexible cable, according to the commonly used model can be divided into RVV and P. RVV copper core PVC sheathed flexible cable, and "P" means shielding, that is, basically adding a shielding layer to the RVV flexible wire, the anti-interference performance has been significantly improved, mainly to resist external signal interference. It is suitable for communication, audio, audio and microphone cable with rated voltage of 300 amp 500V and below. It has the effect of resisting external signal interference.
Connect servocontrollers and servomotors in automated equipment and on assembly lines. This cable withstands continuous motion without degrading data or signal transmission. The PVC insulation resists abrasion and oil. It’s flame rated VW-1 to meet requirements for preventing the spread of flames based on a timed test with vertically suspended material.
Cable with power wires sends electricity to run a servomotor.
Shielded cable has a layer of braid that blocks signal interference from nearby equipment and devices. Double shielded cable has a layer of braid and foil shielding for better protection against signal interference than braid alone. Use it in environments with high signal distortion, such as near transformers, generators, and heavy duty motors.
Characteristics of RVVP Cable:
Rated Voltage: 300/500V
Conductor: Class 5 Conductor
Insulation: PVC
Shielded Layer: Tinned Copper or Pure Copper
Sheath: PVC
Application
These are installed there, where the extreme requirements for the cables are necessary. The selected materials and lay-up technique permit these high flexible cables for permanent application in drag chains for long distances, high and low speed of movements. These high flexible PVC control cables are suitable for shift- and bending stresses in machines and machine tool constructions.
These are installed in dry, moist rooms and in open air with free movement without tensile stress or forced movements. TRVVP-CY200 PVC cables are particularly suitable for the interference-free transmission in instrumentation and control engineering applications.
