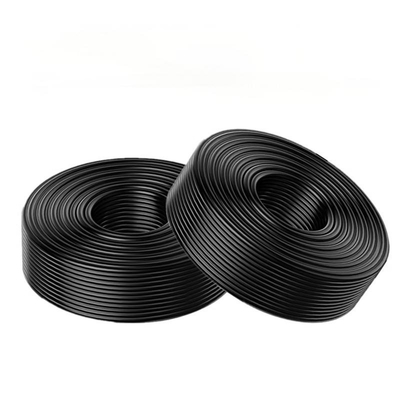

RVV Cable Sheath Wire Stranded Copper Wire 200 Meters New Production Date for Networking
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | RVV Cable | Conductor Material | PVC |
|---|---|---|---|
| Insulation Material | PVC | Color | Black |
| Type | Low Voltage | Minimum Order Quantity | 100M |
| Brand Name | Ebocom /OEM | Payment Terms | L/C, T/T, |
| Certification | ISO9001,ISO45001,ISO14001 | Place Of Origin | Shandong ,China |
| Highlight | Networking RVV Cable Sheath Wire,200 Meters RVV Cable Sheath Wire |
||
Product Description
Product introduction:

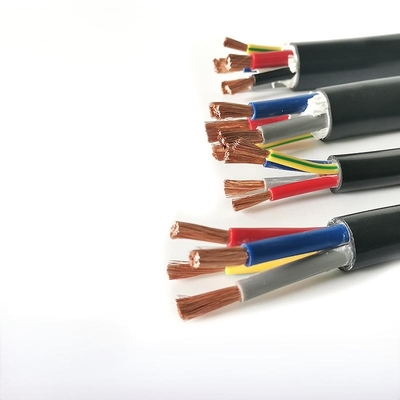

RVV cable is what we said a sheathed wire. It adopts a multi-core electrical conductor structure and is a flexible cable. The electrical conductor of the RVV cable is twisted with a multi-core copper core wire, which is also called PVC cable sheath or PVC sheath.
Characteristics of RVV Cable:
-RVV is the abbreviation of "Copper Core PVC Insulated PVC Sheathed Cable" (Copper Core PVC Insulated PVC Sheathed Cable).
-RVV is a common type of wire and cable commonly used for indoor electrical wiring and low-voltage power transmission
-RVV wire and cable are multi-core cables, usually composed of 2 or more copper core conductors. Each conductor is insulated with PVC insulation material.
-The conductors of RVV wires and cables are made of polyvinyl chloride (PVC) insulation material. PVC insulation provides good electrical insulation properties, protecting conductors from electrical interference.
| Nominal Cross Sectional Areamm² | Insulation Thicknessmm | Sheath Thicknessmm | Average Overall Diameter | Min.Insulation Resistance at 70℃MΩ•Km | Approx.Weightkg/km | |
| Min. | Max. | |||||
| 2×0.75 | 0.6 | 0.8 | 5.7 | 7.2 | 0.011 | 54.1 |
| 2×1 | 0.6 | 0.8 | 5.9 | 7.5 | 0.01 | 2.3 |
| 2×1.5 | 0.7 | 0.8 | 6.8 | 8.6 | 0.01 | 82.1 |
| 2×2.5 | 0.8 | 1 | 8.4 | 10.6 | 0.009 | 126.3 |
| 3×0.75 | 0.6 | 0.8 | 6 | 7.6 | 0.011 | 64.5 |
| 3×1 | 0.6 | 0.8 | 6.3 | 8 | 0.01 | 75.1 |
| 3×1.5 | 0.7 | 0.9 | 7.4 | 9.4 | 0.01 | 103.4 |
| 3×2.5 | 0.8 | 1.1 | 9.2 | 11.4 | 0.009 | 158.8 |
| 4×0.75 | 0.6 | 0.8 | 6.6 | 8.3 | 0.011 | 79 |
| 4×1 | 0.6 | 0.9 | 7.1 | 9 | 0.01 | 96 |
| 4×1.5 | 0.7 | 1 | 8.4 | 10.5 | 0.01 | 131.9 |
| 4×2.5 | 0.8 | 1.1 | 10.1 | 12.5 | 0.009 | 196.7 |
| 5×0.75 | 0.6 | 0.9 | 7.4 | 9.3 | 0.011 | 99 |
| 5×1 | 0.6 | 0.9 | 7.8 | 9.8 | 0.01 | 116 |
| 5×1.5 | 0.7 | 1.1 | 9.3 | 11.6 | 0.01 | 164.1 |
| 5×2.5 | 0.8 | 1.2 | 11.2 | 13.9 | 0.009 | 244.4 |
Application:
RVV cables are mainly used in flexible places such as medium and light mobile appliances, instrumentation, household appliances, and power lighting. They can transmit control signals and power signals. They are also suitable for laying in bridges and hoses.
