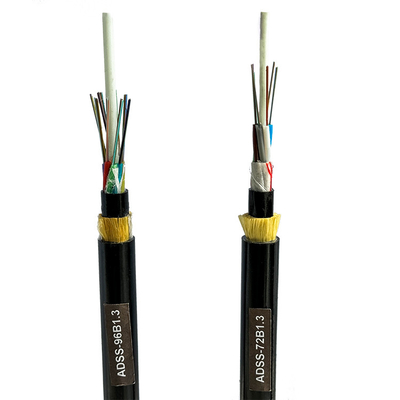

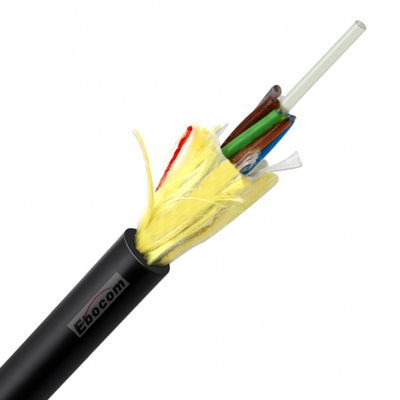

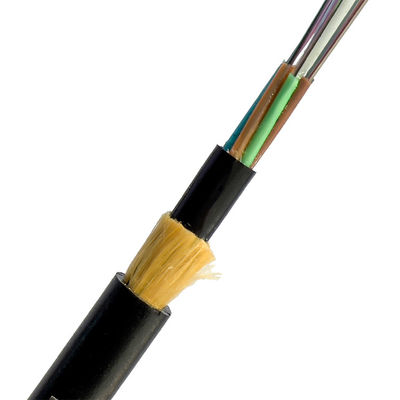

All Dielectric Self Supporting Fiber Optic Cable 24 Core Span1000m For Network Infrastruction

  • All Dielectric Self Supporting Fiber Optic Cable 24 Core Span1000m For Network Infrastruction
  • All Dielectric Self Supporting Fiber Optic Cable 24 Core Span1000m For Network Infrastruction
  • All Dielectric Self Supporting Fiber Optic Cable 24 Core Span1000m For Network Infrastruction
  • All Dielectric Self Supporting Fiber Optic Cable 24 Core Span1000m For Network Infrastruction
  • All Dielectric Self Supporting Fiber Optic Cable 24 Core Span1000m For Network Infrastruction
Place of Origin Shandong，China
Brand Name OEM
Certification ISO TLC
Model Number ADSS -24B1.3
Minimum Order Quantity 2000M
Price EXW $0.18/M
Packaging Details 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers.
Delivery Time 5-8 day
Payment Terms T/T , L/C
Supply Ability 5000KMS/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
FIBER TYPE G652D/G657A1 A2 FIBER COUNT 2-288 CORE
STRENGTH MEMBER FRP JACKET PE
JACKET COLOR BLACK BRAND OEM
Leave a Message
Product Description

Description


ADSS (All-dielectric Self-supporting) optical fibre cable is atype of self-supporting aerial fiber optic cable designed for aerial installation and deployment and is suitable for various outdoor applications. This thorough overview will cover the definition, structure, benefits, and applications of ADSS fiber cables.

All Dielectric Self Supporting Fiber Optic Cable 24 Core Span1000m For Network Infrastruction 0

Features

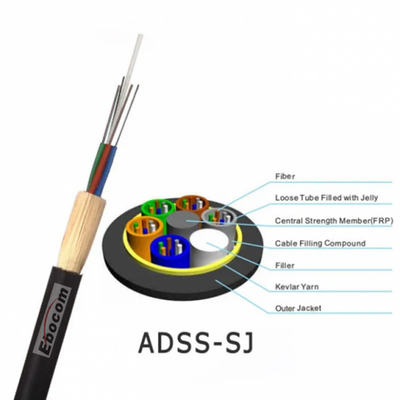

  1. --Stranded loose tube design ensures that the are always free from mechanical strain under the specified loading conditions
  • --Double Jacket designs for medium to long span applications and moderate to heavy ice and wind loading conditions
  • --No metallic or conductive components, allowing the live-line installation (subject to local regulation)
  • --Use for both earth-wires and phase conductors
  • --Torsionally-balanced aramid yarn strength elements provide stable cable design
  • --UV-resistant polyethylene sheath is compatible with fittings
  • --OEM extremely long spans available
  •

ApplicationS

  • Utilised for communications by power utilities, telcos, and private network groups
  • Designed for installation on distribution and transmission lines
  • Capable of being installed in close proximity to conductors if security is a concern
  • Suitable for applications, minimizing the need for outages

Physical Parameters

Span(m) Ice+Wind:0mm+35m/sec Ice+Wind:12mm+30m/sec
Cable O.D.(mm/in) Cable Weight (kg/km)/(lb/kft) Max.Working Tension(N/lb) Max .Sag(%) Cable O.D.(mm/in) Cable Weight (kg/km)/(lb/kft) Max.Working Tension(N/lb) Max .Sag(%)
100 13.9/5.472 152/102.01 7578/1704 2 13.8/0.543 150.0/100.67 6621/1489 2
200 14.3/0.562 161/108.05 10430/2346 3 14.1/0.555 157.0/105.37 9000/2024 3
400 15.9/0.625 199/133.56 23221/5223 3 15.4/0.606 187.0/125.50 19225/4331 3
500 16.7/0.657 220/147.65 30590/6881 3 16.1/0.633 204.0/136.91 24885/5598 3
600 16.3/0.641 209/140.27 26952/6063 4 15.7/0.618 196.0/131.54 22154/4983 4
800 16.5/0.649 216/144.97 29452/6625 5 15.9/0.625 201.0/134.90 24042/5408 6
1000 16.7/0.657 221/148.32 31271/7034 6 16.1/0.633 204.0/136.91 24407/5490 6
