SC/UPC-SC/UPC Duplex Multimode Fiber Optic Patch Cord for High-Performance Communication
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Length | 1m 2m Or Customized | Color | Yellow/Orange Or As Required |
|---|---|---|---|
| Jacket | PVC Or LSZH | Connector Type | Lc-Lc/Customized |
| Fiber Type | OM3,OM2,OM1,G657A1,OM4 | Sample | Avaliable |
| Highlight | Multimode Fiber Optic Patch Cord |
||
Product Description

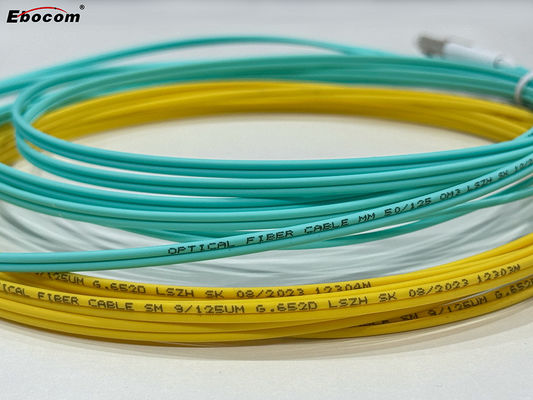

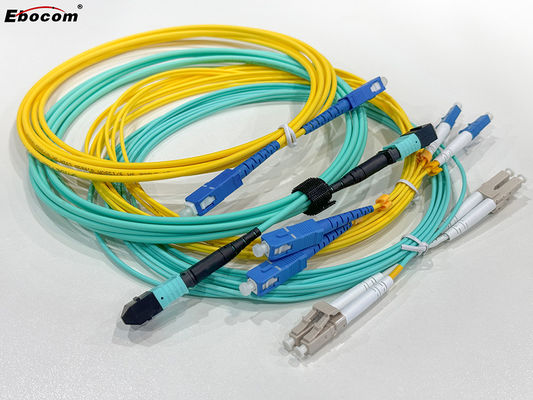

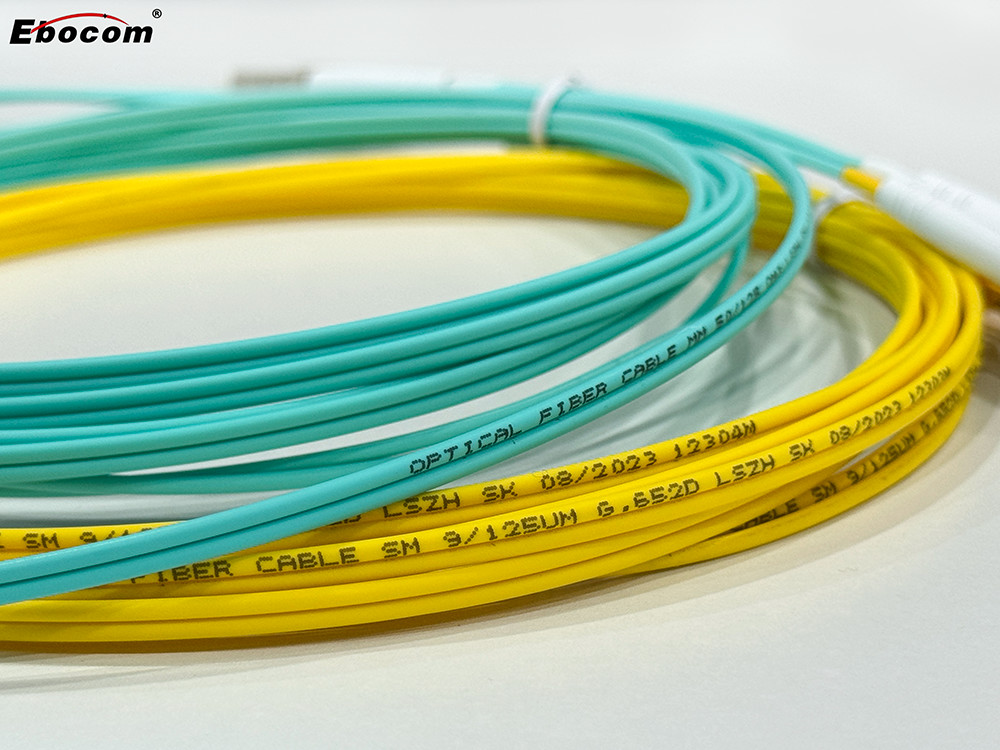

SC/UPC-SC/UPC Duplex Multimode OM3 2.0mm Fiber Optic Patch Cable
Description:
Fiber splicing cables are ideal for supporting fiber optic applications in high-speed telecommunications networks. It can provide OM1, OM2, OM3, OM4, OM5, or OS2 optical fibers to meet the requirements of Gigabit Ethernet, 10-Gigabit Ethernet, and high-speed Fibre Channel. Each terminal is subjected to rigorous parametric testing to ensure the highest network performance.
Application
Local ring net
Optical fiber sensor
Optical fiber test equipment
Optical fiber communication system
FTTH, LAN, PON & Optical CATV
Product Performance
| Item | SM(Single Mode) | MM(Multimode) | |||
| Fiber Cable Type | G652/G655/G657 | OM1 | OM2/OM3/OM4 | ||
| Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
| Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
| End-face Type | PC | UPC | APC | UPC | UPC |
| Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
| Return Loss (dB) | >45 | >50 | >60 | / | |
| Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
| Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
| Anti-tensile Force (N) | >70 | ||||
| Temperature Range (ºC) | -40~+80 | ||||
