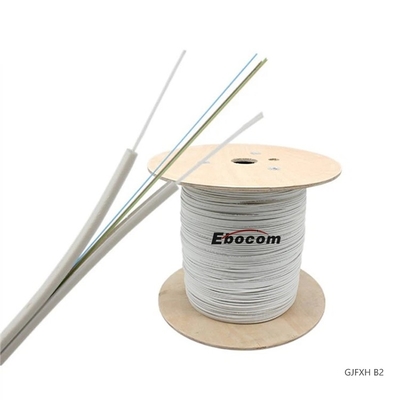

GJFXH outdoor drop cable light ftth 1/2/4 core fiber optic Single mode G657 fiber lszh material lszh networking
Single mode outdoor drop cable
,ftth outdoor drop cable
,GJFXH outdoor drop cable

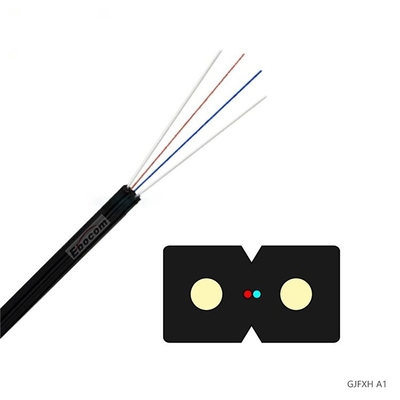

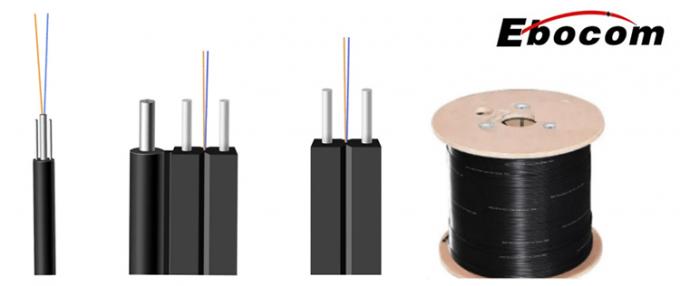

The fiber optic unit is located in the center. Two parallel steel wires (or glass steel) are placed on either side. 1 extra wire for the suspension wire. The cables are then fitted with black or colour LSZH sheathing.
Optional Fiber:
Single mode G652D G657A1 G657A2
Multi-mode OM1 OM2 OM3 OM4 OM5
Features:
- 1.Simple structure, convenient, convenient indoor wiring.
- Good anti-side pressure design
- The number of fiber cores is 1-12. Other fiber cores can be provided on request
- White is used indoors, other colors are also available upon request
- The outer sheath material is LSZH, other materials can also be used according to requirements.
Application field:
- Used for pigtails and jumpers
- Used as the device interconnection cable for the optical connection between the optical communication room and the optical communication room.Distribution framework.
- Used for indoor wiring, especially for FTTH.
| Item | Technology parameter |
| Cable type | Drop Cable |
| Cable Count | 1 2 4 |
| Fiber color | Optional |
| Fiber type | 9/125 (G657) |
| Sheath color | Black and white |
| Sheath material | LSZH |
| Cable dimension (mm) | 3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1) |
| Cable weight (Kg/km) | 15 |
| Min. bending radius (mm) | 10 (Static) 25 (Static) 30 (Static) 60 (Static) |
| Attenuation (dB/km) | 0.4 at 1310nm, 0.3 at 1550nm |
| Short term tensile ( N) | 200; 600 |
| Crush resistance (N/100mm) | 1000; 2200 |
| Operation temperature (℃) | -20~+70℃ |
