Made in China GJYXFCH 1km ftth fiber drop cable Price 2 Core Single Mode Fiber

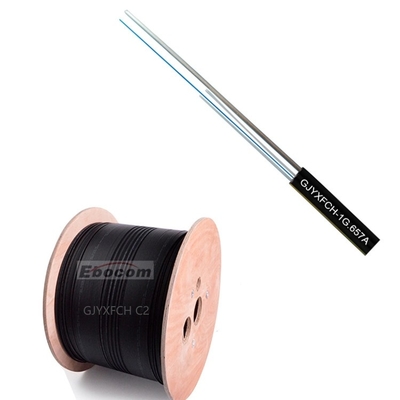

1km ftth fiber drop cable
,2 Core ftth fiber drop cable

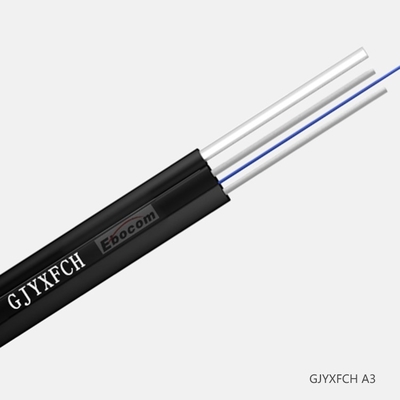

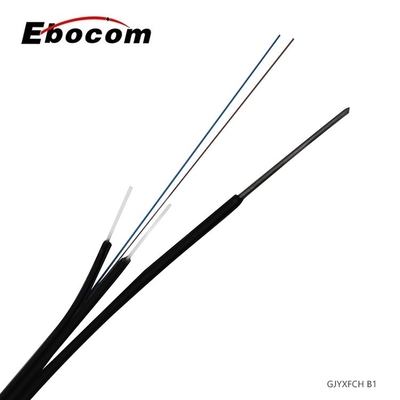

The self-supporting FTTH lead-in cable consists of one or two single-mode fibers (G.657A). The cable is protected by two parallel reinforcement pieces of metal, steel wire and LSZH outer sheathing. The cable is designed for outdoor installation and is ideal for connections between domed enclosures and small residential units/warehouses and detached villas.
Applications:
-
used as an outdoor to indoor access cable in the access network or user resident network
-
Used as access building optical cable in the resident distribution system, especially suitable for indoor or outdoor overhead access wiring.
Features:
- Light weight and compact structure
- Two parallel FRP reinforcements for optimal fiber optic protection
- Low bend sensitivity fiber (G.657A) provides high bandwidth and excellent communication transmission
- Low smoke zero halogen (LSZH), non-toxic, self-extinguishing sheath
| Item | Parameters | |
| Fiber | Color | All colors display |
| Number of cores | 2 | |
| Strength member | Material | Phosphating steel wire |
| Diameter (mm) | 0.4 | |
| Messenger wire | Material | Phosphating steel wire |
| Diameter (mm) | 0.9 | |
|
Outer jacket |
Material | LSZH(Oxygen index≥25%) |
| Color | Black | |
| Cable diameter (Rip off the messenger wire) (mm) | 2.0±0.1*3.0±0.1 | |
| Min. bending radius(Rip off the messenger wire) | Static | 15mm |
| Dynamic | 30mm | |
| Tensile performance | Short term | 600N |
| Crush | Short term | 2200N/100mm |
FTTH Drop Cable Outdoor 2 core GJYXCH G657A LSZH Fibra Optica G657A G655D networking wire construction
Two core flat drop cable for fiber To The Home (FTTH) application, the cable is constructed with two single mode fibers protected by dielectric strength member made of fiber reinforced plastic (FRP) strength member and LSZH outer jacket. FTTH cable Application: It is very light in construction and ...
GJYXFCH Self Supporting Drop Cable
Description The optical fiber unit is positioned in the center. Two parallel Fiber Reinforced(FRP) are placed at the two sides. A steel wire as the additional strength member is also applied. Then, the cable is completed with a black or white color LSZH sheath./PVC sheath. Characteristics 1. High ...
Fiber Optic Cable FTTH Drop Cable 1core GJXH For Indoor Networking Internet Communication
Description The fiber optic cable‘s structure :optical fiber unit is located in the center. Two parallel steel wire are located on either side as an reinforcement.Finally, the cable features a black LSZH jacket. Optical fiber parameters: Optical performance Unit Data 1.Geometry Characteristics 1.1 ...
Fiber Optic Cable Drop Cable 1Core GJYXCH G657A1 For FTTH Distribution Networks
Description The drop cable is the final connection linking a service provider's main network (like fiber, cable TV, or telecom) to an individual customer's home or business, serving as the "last mile" link for internet, phone, or TV services, with common types including flat indoor/outdoor FTTH ...
