Indoor FTTH fiber optic cable drop cable single mode GJXH 2 core 4 core ftth 1km communication networking wire
1km FTTH fiber optic cable
,Indoor FTTH fiber optic cable
,2 core FTTH fiber optic cable
FTTH indoor optical cable has larger data transmission bandwidth than ordinary indoor optical cable, and is less susceptible to interference, which is very suitable for indoor wiring, end-user direct house and access network.
Main features:
–Special low bending sensitivity optical fiber, providing high bandwidth and excellent communication transmission performance.

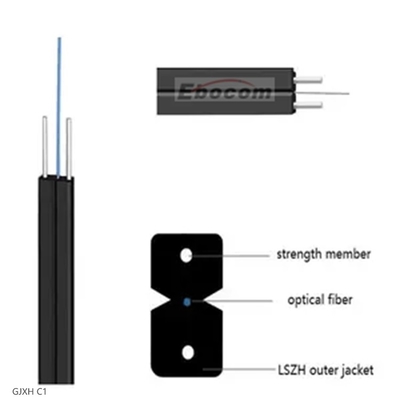

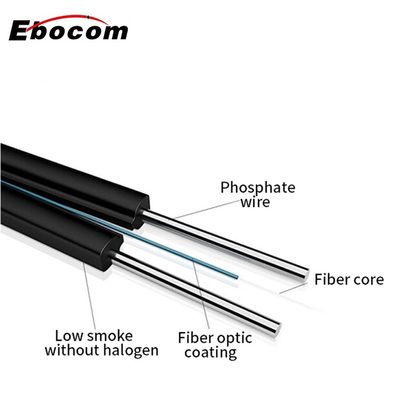

–Two parallel reinforcements ensure good compression resistance and protect the fibers.
–Simple structure, light weight, high practicability.
–Novel groove design, easy disassembly and assembly, simplifying installation and maintenance
Applications:
— FTTH system
— Indoor riser level and plenum level cable distribution
— Interconnect between instruments, communication equipment
Cable technical parameter:
| Structure | Unit | Parameter | |
| Color of the cable | Black/white | ||
| Fiber count | Fibers | 1-12 | |
| Diameter | mm | 3.0*2.0 | |
| Weight | Kg/km | Approx.8.2 | |
| Tensile strength | N | 800 | |
| Crush Resistance | N | 60 | |
| Bending Radius |
Dynamic | ≥20×Cable Diameter | |
| Static | ≥10×Cable Diameter | ||
| Operating Temperature | °c | -40 — +60 | |
