FTTH Fiber Optical Cable G657a2 Fiber 1km Factory Price 2 Core Black g652d g657a networking
Black FTTH Fiber Optical Cable
,2 Core FTTH Fiber Optical Cable
,1km FTTH Fiber Optical Cable

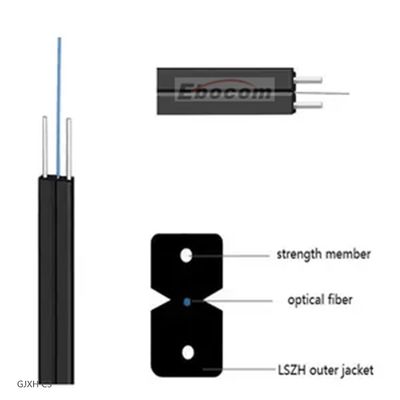

FTTH outdoor optical cable is used inside buildings or houses, and its feature is that the optical communication unit is placed in the center, with two parallel non-metallic reinforced FRP/Steel wires as reinforcements, and surrounded by LSZH sheath.
Main application:
- This cable is suitable for interior FTTH applications, including horizontal and riser installations, and clamping to surfaces including skirting boards.
- In short distance external applications, use black LSZH sheath.
This fiber optic cable has the following characteristics:
- Novel groove design, easy to strip, simplify installation and maintenance, and have higher tensile strength.
- It is suitable as a cable extending from outdoors (such as overhead cables) to indoors, and some short-distance outdoor applications.
- In addition, the optical cable adopts a low-smoke, zero-halogen, and flame-retardant sheath, which has good environmental protection and safety, and meets various environmental protection requirements.
Technology parameter:
| Item | Technology parameter |
| Cable type | Drop Cable |
| Cable Count | 1 2 4 6 8 |
| Fiber color | Green, Yellow |
| Fiber type | 9/125 (G657A2) |
| Sheath color | Black and white |
| Sheath material | LSZH |
| Cable dimension (mm) | 3.0(±0.1)*2.0(±0.1); 5.2(±0.1)*2.0(±0.1) |
| Cable weight (Kg/km) | 15 |
| Min. bending radius (mm) | 10 (Static) 25 (Static) 30 (Static) 60 (Static) |
| Attenuation (dB/km) | 0.4 at 1310nm, 0.3 at 1550nm |
| Short term tensile ( N) | 200; 600 |
| Crush resistance (N/100mm) | 1000; 2200 |
| Operation temperature (℃) | -20~+70℃ |
