Outdoor Optical Fiber Drop Cable 1/2/4 Cores GJYXFCH 8 FTTH Self-Support Indoor networking application
Outdoor Optical Fiber Drop Cable
,4 Cores Optical Fiber Drop Cable

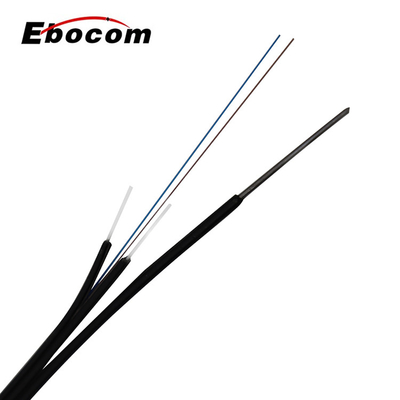

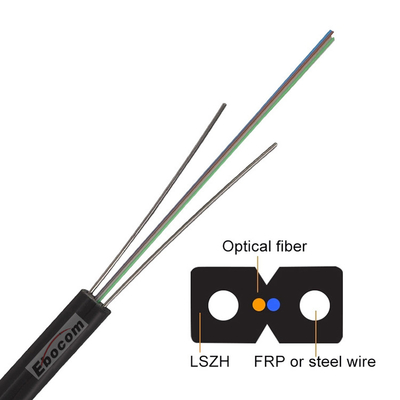

Outdoor/Indoor Figure 8 Flat Drop cable is a cable designed specifically for FTTH project. It adopts double reinforcement figure 8 structure, the optical fiber unit is positioned in the center, two parallel fiber reinforced steel wire are placed at two sides, then the cable is completed with a black or white color LSZH Sheath. This drop cable can directly drop into the building household from the fiber optic splice closure.
Key Features:
Suitable for limited space field of the branch, indoor series;
Laid to facilitate construction operations;
Jacket use low smoke, halogen-free flame-retardant materials;
Prevent lightning and strong electric environment;
FRP strengthen the component materials.
Drop Cable Applications:
- Used as access building cable.
- Used in indoor cabling, especially used for FTTH.
Drop Cable Technical Parameters:
| Drop Cable Type | GJYXFCH-1B6/2B6/4B6 | |||
| No.of fiber | 1F-4F | |||
| SM fiber
|
Fiber type | G657A1, A2 | Concentricity error | ≤0.5um |
| Cladding diameter | 124.8±0.7um | Cladding non-circularity | ≤0.7% | |
| Coating diameter | 245±5um | Fiber color | standard spectrum | |
| Central strength member | Material | FRP | Color | white |
| Diameter | 0.5mm | Qty | 2 | |
| Self support messenger wire | Material | bright steel wire | Diameter |
1.0mm |
| Out sheath | Material | LSZH | Color | black |
| Diameter | 2.0*5.0mm (1-2F)
2.0*5.2mm (4F) |
Thickness | >=0.5mm | |
