Indoor GJFXH FTTH drop cable Singlemode 4 core g657A Friber Optical FTTH lszh comunication wire distribution
Indoor FTTH drop cable
,4 core FTTH drop cable
,Singlemode FTTH drop cable

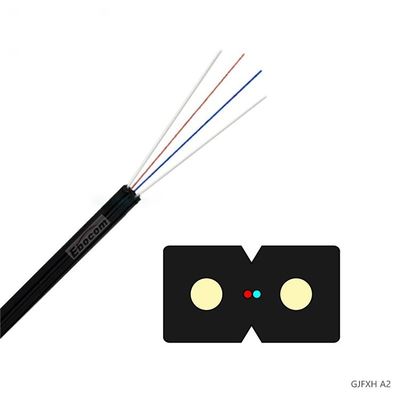

The fiber optic drop cable (indoor wiring) used for Fiber Optic Drop Cable access is centered on the optical communication unit (optical fiber), and two non-metallic reinforcements (FRP) or metal reinforcements are placed in parallel on both sides, and finally black or colored PVC is extruded Vinyl (PVC)/Low Smoke Zero Halogen (LSZH) sheath.
Drop Cable Features:
.Adopt fiber with small bending radius (G.657),
.offering good bending resistance;
.Adopt all-dry structure and fiber with small bending radius,
.offering good bending resistance;
.Easy cable stripping without need of tools, easy cable fixation
.and low cost of installation.
Drop Cable Application:
.As FTTH cable,for indoor horizontal and vertical cabling;
.Indoor cabling under carpet and along corner.
.Outdoor cable suitable as cable extending from outdoor (as aerial cable) to indoor;
| Item | Technology Parameter |
| Cable type | FTTH Drop Cable |
| Cable Count | 1 2 4 6 8 12 |
| Fiber color | Blue, Orange, Green, Brown etc |
| Fiber type | 9/125 (G657A2) |
| Sheath color | Black and white |
| Sheath material | LSZH |
| Cable dimension (mm) | 5.2(±0.1)*2.0(±0.1) |
| Cable weight (Kg/km) | 15 |
| Min. bending radius (mm) | 10 (Static) 25 (Static) 30 (Static) 60 (Static) |
| Attenuation (dB/km) | <= 0.4 at 1310nm, <= 0.3 at 1550nm |
| Short term tensile ( N) | 200; 600 |
| Crush resistance (N/100mm) | 1000; 2200 |
| Operation temperature (ºC) | -20~+70ºC |
