High quality GJXH Indoor FTTH Optical Fiber Cable 2core Single Mode G657A G652D single mode multi mode lszh jacket
2core FTTH Optical Fiber Cable

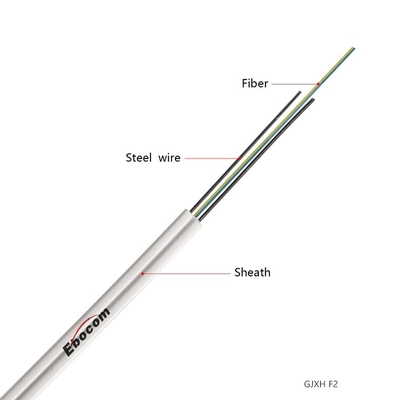

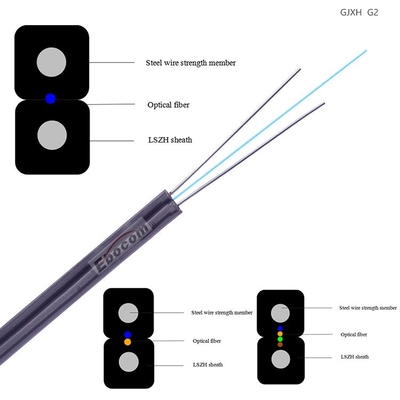

The FTTH drop cable has a flame-retardant cable sheath (LSZH) and a supporting steel wire, and the fiber optic cable is supported by a strengthening member inside. The fiber optic drop cable has a special structure that can easily pull the fiber out of the cable, FTTH drop cable is very suitable for direct installation into the room, especially for home and office use.
FTTH fiber optical cable Features:
– Easy jacket removal without special tools
– Self-support structure
– Excellent crush and impact resistance
– Flame Retardant LSZH jacket is applied
– G.657 fiber is available
– Available from 1 to 4 fibers
FTTH fiber optical Cable Parameters:
| Items | Unit | Specifications |

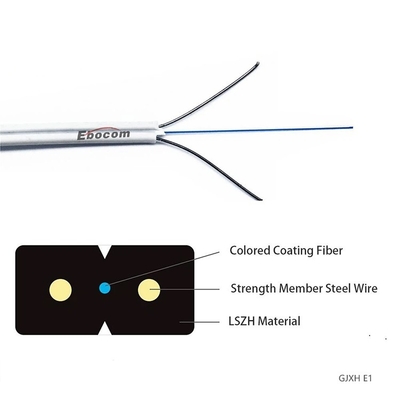

| Colored Coating Fiber | Dimension | 250μm±15μm |
| Color | Standard | |
| Strength Member | Material | FRP |
| Self-Supporting Member | Dimension | 1.0mm |
| Material | Steel | |
| Jacket | Dimension | 5.0±0.2mm×2.0±0.1mm |
| Material | LSZH | |
| Color | Black |
