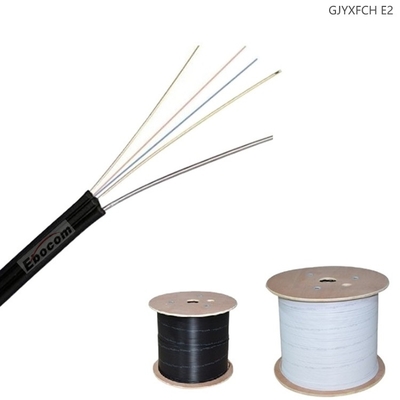

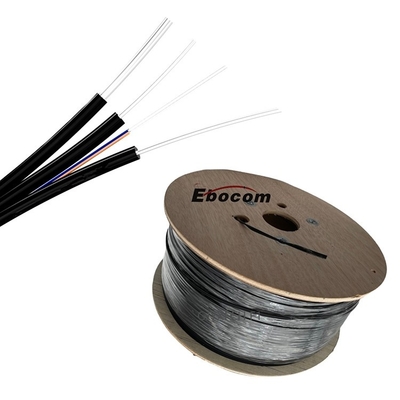

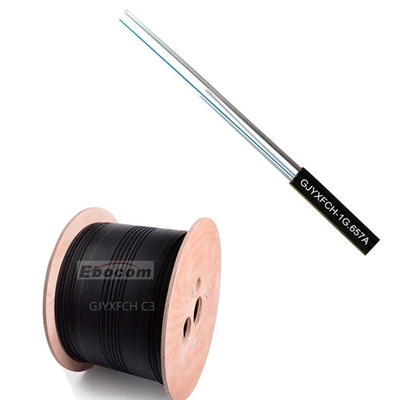

Outdoor GJYXFCH/GJYXCH FTTH cable Self-Supporting Drop Cable lszh Internet telecommunications black wire
Black Wire FTTH Drop Cable

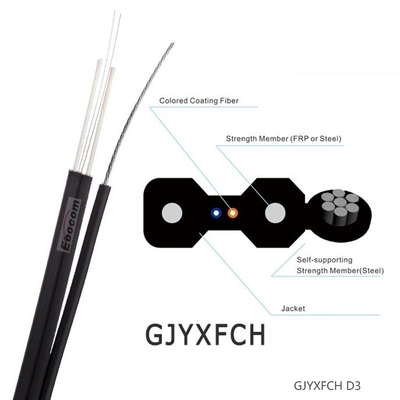

GJYXFCH leather cable is made by placing the optical communication unit in the center, placing two parallel non-metallic strengthening elements (FRP) on both sides, and adding a steel wire strengthening element on the outside, and finally extruding a black or colored low-smoke and halogen-free sheath cable.
Self-Supporting DropCable Features:
— Good mechanical and environmental performance;
— Flame retardant (or non-flammable) performance meets the requirements of relevant standards;
— The mechanical and physical properties of the sheath meet the requirements of relevant standards;
— Soft, flexible, easy to connect, and support large-capacity data transmission;
— Meet the various requirements of the market and users.
Application:
- Aerial lead-in cables for outdoor wiring of fiber-to-the-home projects;
- For indoor wiring, end users use cables directly.
MainTechnical Parameters:
Storage and use temperature: -20℃~+60℃.
| Fiber Cable Type | Fiber Count | Dimension | Weight | Allowable Tensile Force | Allowable Crush Resistance | Bending Radius | |||
| (mm) | (kg/km) | (N) | (N/100mm) | (mm) | |||||
| Long-term | Short-term | Long-term | Short-term | Static | Dynamic | ||||
| GJYXCH | 1 | 5.0×2.0±0.1 | 21 | 300 | 600 | 1000 | 2000 | 20D | 40D |
| GJYXCH | 2 | 5.0×2.0±0.1 | 21 | 300 | 600 | 1000 | 2000 | 20D | 40D |
| GJYXCH | 4 | 5.0×2.0±0.1 | 21 | 300 | 600 | 1000 | 2000 | 20D | 40D |
| GJYXFCH | 1 | 5.0×2.0±0.1 | 20 | 300 | 600 | 1000 | 2000 | 20D | 40D |
| GJYXFCH | 2 | 5.0×2.0±0.1 | 20 | 300 | 600 | 1000 | 2000 | 20D | 40D |
| GJYXFCH | 4 | 5.0×2.0±0.1 | 20 | 300 | 600 | 1000 | 2000 | 20D | 40D |
| The above data is for reference only, please refer to the actual situation | |||||||||
Company Profile:
Shandong Yibo Optronics Technology Co., Ltd. (Ebocom®), established in 2012, is located in the beautiful spring city
of Jinan, covering an area of 26,600 ㎡ . It is a high-tech enterprise focusing on the research and development, production, sales and service of optical cables and communication equipment. Ebocom® is committed to the research, development and application of optical cable products and communication
products. Our products include various types of optical cables (outdoor/indoor optical cables, ADSS, OPGW, mining
cables, FTTH drop cables, patch cord and pigtails) as well as optical cable-related connectors, accessories and
equipment. Widely used in telecom operators, data centers, enterprise networks and other communication
infrastructure fields. The products strictly implement national standards and have obtained ISO9001, ISO14001, ISO45001, ISO50001, TLC certification, and National Radio and Television Administration network access certification. It also has 3 invention patents and 27 utility model patents. Ebocom® focus on R&D innovation and constantly pursue advancement in technology to meet the changing needs
of our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc.
