Indoor drop Pigtail Fiber Cable LC SC FC UPC Singlemode SM MM 3m 5m g657a lszh jacket Fiber Distribution Frame
Indoor drop Fiber Cable
,3m 5m Fiber Cable
,g657a Pigtail Fiber Cable
Description:

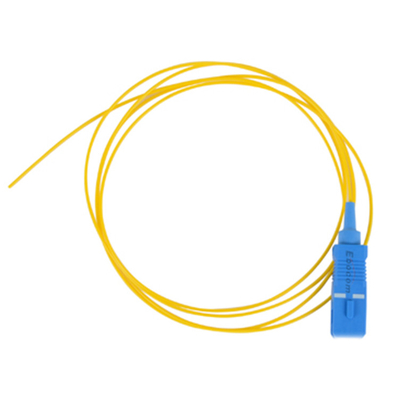

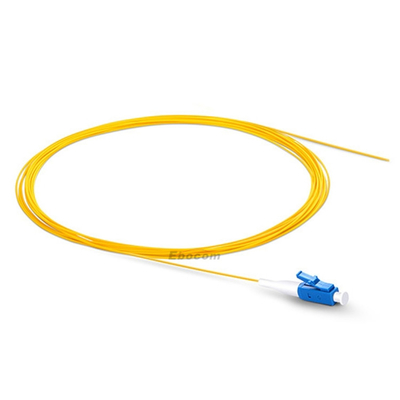

A fiber pigtail jumper is a fiber optic cable with connectors on both ends for quick and easy connection to cable TV, optical switches, or other telecommunications equipment. It has a thick protective layer for connecting optical transmitters, optical receivers and terminal boxes. This is called “interconnect wiring”.
Product features:
Low insertion loss
Low PDL
Excellent interchannel uniformity
High return loss, good repeatability
Wide wavelength range
Application:
Local area Network, wide area network and metropolitan area network
FTTH project and FTTX deployment
Cable television system
GPON, epoxy resin
Optical fiber test equipment
Database transfer broadband network
| Item | Single mode | Multi mode | ||
| PC | UPC | APC | PC | |
| Insertion Loss | <or=0.3dB | <or=0.3dB | <or=0.3dB | <or=0.3dB |
| Return Loss | >or=50dB | >or=55dB | >or=60dB | >or=35dB |
| Repeatability | <or=0.1dB | <or=0.1dB | <or=0.1dB | <or=0.1dB |
| Operating Wavelength | 1310nm,1550nm | 850nm,1300nm | ||
| Temperature Stability | Additional Loss≤0.2dB, Return Loss Variability<5dB | |||
| Working Temperature | -50ºC~+75ºC | |||
