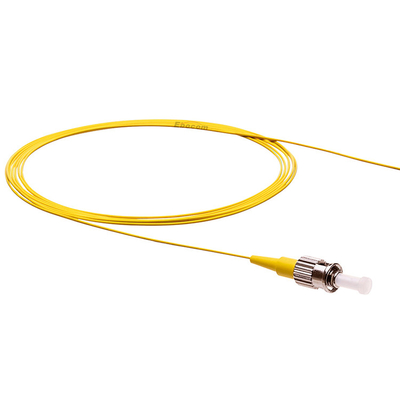

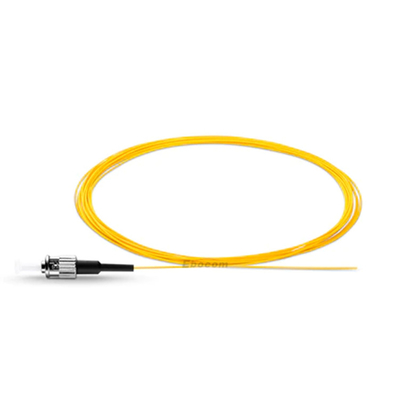

Fiber Pigtails FC APC UPC Optical Fiber Cables for FTTH OM3 2m 3m high speed Fiber Distribution Frame
FC APC UPC Fiber Pigtails
,2m Fiber Pigtails
,FTTH Fiber Pigtails
Product profile
An fiber pigtail is a cable with only one fiber connector; It is commonly used to connect to fiber optic devices. One side of the connector is mainly responsible for the connection, and the other side is fused with the optical fiber glass to achieve minimal insertion loss. We offer a full range of single mode and multi-mode fiber braids.
Characteristic
- Low insertion loss, high return loss.
- Excellent mechanical durability.
- High reliability and stability.
- Good repeatability and interchangeability.
- 100% insert, return loss end face and interference detection.
Application
- Telecommunications and data communication applications.
- Patch board, wall box, odf and splice cassette.
- Easy field installation of ribbon braids.
- Support high-speed multi-channel video, data and voice services in metro and access networks.
- ATM, SONET and WDM.
Technical data
| Connector | FC, SC, LC, ST, MU, E2000, LSH… | |
| Fiber model | SM | G652D, G657A1, G657A2 |
| MM | OM1, OM2, OM3, OM4, OM5 | |
| Cable Dia | Ø0.9mm, Ø2.0mm, Ø3.0mm | |
| Strength Member | aramid yarn, kelvar yarn | |
| Jacket | PVC, LSZH, OFNR, PE, TPU | |
| Core number | Simplex, Duplex, Multicore | |
| Length | 1, 2, 3, 5, 10m…or customized | |
Company Profile
Shandong Yibo Optronics Technology Co., Ltd. (Ebocom®), established in 2012, is located in the beautiful spring city
of Jinan, covering an area of 26,600 ㎡ . It is a high-tech enterprise focusing on the research and development, production, sales and service of optical cables and communication equipment. Ebocom® is committed to the research, development and application of optical cable products and communication
products. Our products include various types of optical cables (outdoor/indoor optical cables, ADSS, OPGW, mining
cables, FTTH drop cables, patch cord and pigtails) as well as optical cable-related connectors, accessories and
equipment. Widely used in telecom operators, data centers, enterprise networks and other communication
infrastructure fields. The products strictly implement national standards and have obtained ISO9001, ISO14001, ISO45001, ISO50001, TLC certification, and National Radio and Television Administration network access certification. It also has 3 invention patents and 27 utility model patents. Ebocom® focus on R&D innovation and constantly pursue advancement in technology to meet the changing needs
of our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc.
