SC/APC Fiber Pigtail Patch Cord Sm Cable 1m 2m 3m Network Equipment Fiber Distribution Frame Internet
2m Fiber Pigtail Patch Cord
,1m Fiber Pigtail Patch Cord
,3m Fiber Pigtail Patch Cord

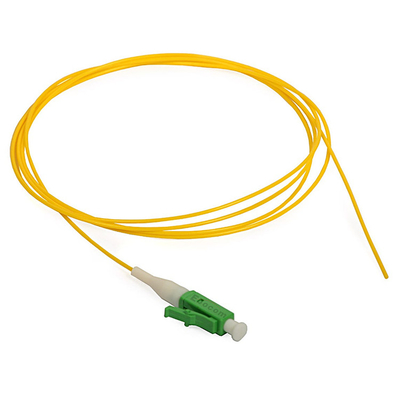

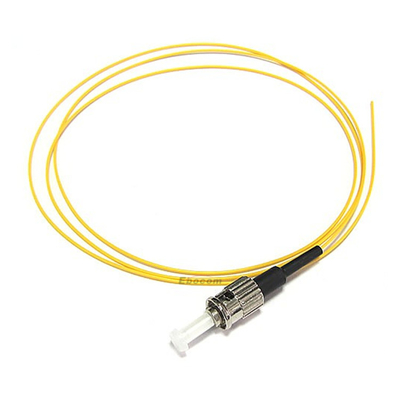

An optical fiber pigtail is a type of cable used to connect optical fiber devices, such as optical transceivers, optical modules, and switches. Its main role is to provide a reliable optical connection to transmit the optical signal from the transmitting end to the receiving end, so as to achieve the transmission of data. Both ends of an optical fiber pigtail are specially processed and can use different types of optical interfaces, such as SC, LC, ST, and FC, to meet different device requirements. And the fiber pigtail usually has excellent performance, such as low loss, high bandwidth, strong anti-interference ability and so on. It is widely used in the fields of communication, data network, radio and television.
APPLICATIONS:
CATV
Telecommunication networks
Active device termination
Metro
Local Area Networks (LANs)
Data processing networks
Test equipment
Premise installations
Wide Area Networks (WANs)
FEATURES:
Low insertion loss and reverse reflection loss
Good commutability
Good durability
High temperature stability
PRODUCT PARAMETER:
| End face type | PC,UPC and APC |
| Fiber type | SM(G652,G655,G657);MM(OM1-OM5) |
| Cable Diameter | 2.0,3.0 or customized(Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB ,APC SM≥ 60 dB, PC MM ≥ 35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20ºC~70ºC |
| Storage Temperature | -40ºC~80ºC |
| Outer Sheath Material | PVC,LSZH,PU |
| Bending radius(Static/Dynamic) | 10D/20D |
| Length | Customized |
Company Profile:
Shandong Yibo Optronics Technology Co., Ltd. (Ebocom®), established in 2012, is located in the beautiful spring city
of Jinan, covering an area of 26,600 ㎡ . It is a high-tech enterprise focusing on the research and development, production, sales and service of optical cables and communication equipment. Ebocom® is committed to the research, development and application of optical cable products and communication
products. Our products include various types of optical cables (outdoor/indoor optical cables, ADSS, OPGW, mining
cables, FTTH drop cables, patch cord and pigtails) as well as optical cable-related connectors, accessories and
equipment. Widely used in telecom operators, data centers, enterprise networks and other communication
infrastructure fields. The products strictly implement national standards and have obtained ISO9001, ISO14001, ISO45001, ISO50001, TLC certification, and National Radio and Television Administration network access certification. It also has 3 invention patents and 27 utility model patents. Ebocom® focus on R&D innovation and constantly pursue advancement in technology to meet the changing needs
of our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc.
