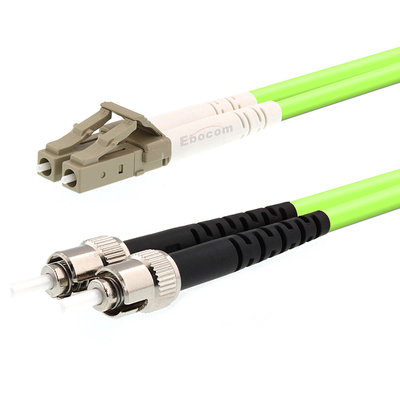

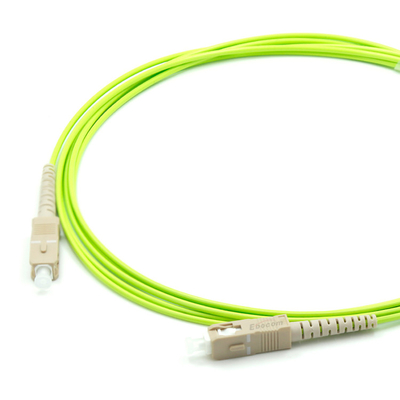

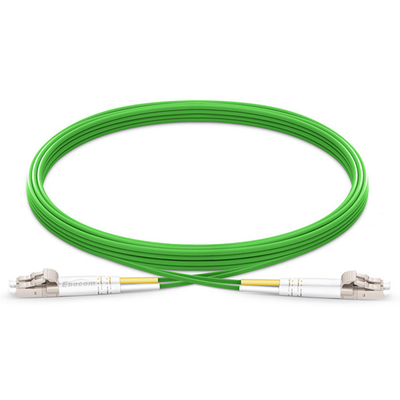

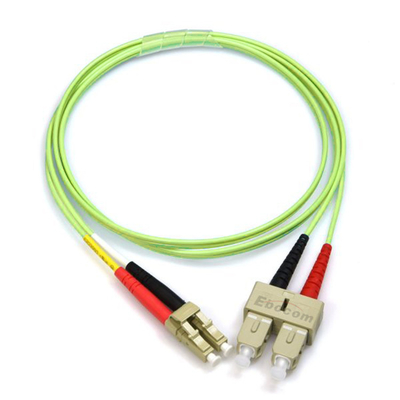

LC SC ST Duplex Simplex Patch Cord OM5 Multimode Fiber Optic Cable with LSZH Jacket Network Equipment high speed
OM5 Multimode Fiber Optic Patch Cord
,LSZH Jacket Network Equipment Patch Cord
OM5 patch cable is a type of fiber optic patch cable that is designed to support wavelength division multiplexing (WDM) technology. WDM technology is used to increase the transmission capacity of fiber optic cables by enabling the simultaneous transmission of multiple signals on a single fiber. OM5 is a high-bandwidth, multimode fiber that is specifically designed to support WDM technology.
OM5 patch cables are capable of transmitting data at speeds of up to 100 Gbps over a range of up to 150 meters. They are ideal for use in data center applications, high-performance computing, and telecommunications networks. The cables are available in various lengths and connector types, including SC, LC, and MTP/MPO.
Features:
- Low loss at the interface
- High back reflection loss
- Rated OM5 provides broadband 50/125 multimode fiber solutions
- Provide upgrade paths from 40gbps to 100gbps and above
- Backward compatibility with OM3 and OM4 applications
- Low smoke, zero halogen (LSZH) green jacket
- Ideal solution for high-speed data transfer
- 100% check optical characteristics before shipment
Applications:
- Telecommunication
- Computer networks
- CATV networks
- Active device termination
- Instrumentation
Product Parameter:
| Characteristic | SM , MM | |||
| Connector type | FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000 | |||
| Diameter(mm) | 0.9,2.0,3.0 | |||
| Polishing grade | SM UPC | MM UPC | SM APC | |
| Insertion loss | Grade B | ≤0.15dB | ≤0.1dB | ≤0.15dB |
| Grade C | ≤0.30dB | ≤0.30dB | ≤0.30dB | |
| Return loss | ≥55dB | ≥30dB | ≥65dB | |
| Interchangeability | ≤0.1dB | |||
| Repeatability | ≤0.1dB | |||
| Operation temperature (ºC) | -20°C ~ +70°C | |||
| Storage temperature (ºC) | -40°C ~ +80°C | |||
Company Profile:
Shandong Yibo Optronics Technology Co., Ltd. (Ebocom®), established in 2012, is located in the beautiful spring city
of Jinan, covering an area of 26,600 ㎡ . It is a high-tech enterprise focusing on the research and development, production, sales and service of optical cables and communication equipment. Ebocom® is committed to the research, development and application of optical cable products and communication
products. Our products include various types of optical cables (outdoor/indoor optical cables, ADSS, OPGW, mining
cables, FTTH drop cables, patch cord and pigtails) as well as optical cable-related connectors, accessories and
equipment. Widely used in telecom operators, data centers, enterprise networks and other communication
infrastructure fields. The products strictly implement national standards and have obtained ISO9001, ISO14001, ISO45001, ISO50001, TLC certification, and National Radio and Television Administration network access certification. It also has 3 invention patents and 27 utility model patents. Ebocom® focus on R&D innovation and constantly pursue advancement in technology to meet the changing needs
of our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc.
