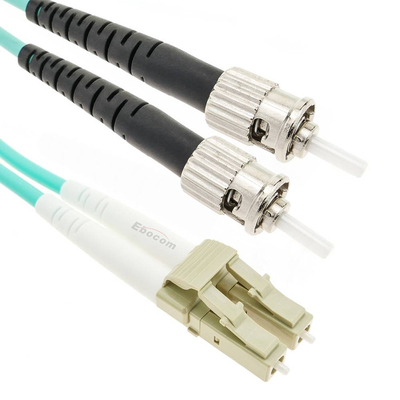

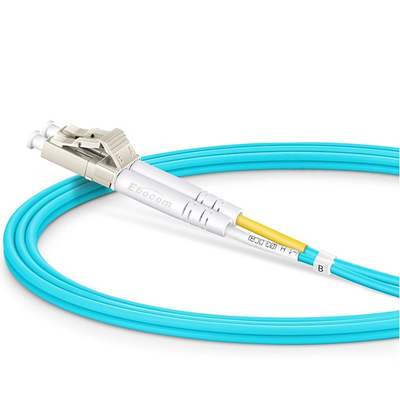

Duplex Patch Cord LC-to-ST Om3 om4 Multimode 2.0mm 3.0mmFiber Efficiency high speed Network Equipment
Multimode Duplex Patch Cord
,3.0mm Duplex Patch Cord
Fiber jumper cables are also known as fiber jumper or fiber jumper. It is one of the most commonly used devices in fiber optic networks. Optical fiber plug-in cables are mainly divided into single-mode and multi-mode two types. Single-mode fiber connector cables are usually made of 9/125 glass fiber, and the sheath is yellow; The multimode fiber cable is made of 50/125, 62.5/125 or 50/125 10Gig glass fiber with an orange or light green jacket, respectively.
Fiber Jumper cables come with a variety of fiber optic connectors for connecting devices and components in fiber optic networks, and Ebocom supplies a variety of fiber jumper cables available in PC, UPC and APC polishing types. Each connector is visually inspected with a 400-fold microscope and tested with insertion loss and reflection equipment, and if necessary, we also perform a geometric inspection of the cable using a DORC interferometer to ensure superior performance.
Features:
High performance in Insertion loss & Return Loss 100% pre-terminated tested.
Supports 40G and 100G network applications.
Jacket material: LSZH, OFNR, OFNP available.
Jacket color: Aqua, Yellow or customize.
Supports up to 4F,8F,12F, 24F, 48F, 72F, 96F, 144F, customized products are available.
Optical Specification(MPO Connector):
| Parameter | Singlemode Patch cord | Multimode Patchc ord | ||
| Polishing Type | PC | APC | PC | |
| Insertion loss(dB) | Max. | <=0.7dB | <=0.7dB | <=0.7dB |
| Typical | <=0.35dB | <=0.35dB | <=0.35dB | |
| Return loss(dB) | >=50dB | >=60dB | ≥20dB | |
| Operating temperature | -20ºC~75ºC | |||
| Storage Temperature | -40ºC~75ºC | |||
| 500 mating cycles loss | I.L changed≤0.2dB | |||
| Durability | >1000 cycles | |||
Optical Specifications(Other Connector):
| Parameter | Singlemode Patch cord | Multimode Patch cord | ||
| Polishing Type | PC | UPC | APC | PC |
| Insertion loss(dB) | <=0.3dB,MTRJ<=0.5dB | <=0.3dB | <=0.3dB | <=0.3dB,MTRJ<=0.5dB |
| Return loss(dB) | >=45dB,MTRJ>=35dB | >=55dB | >=65dB | |
| Operating temperature | -20ºC~75ºC | |||
| Storage Temperature | -40ºC~75ºC | |||
| 100 mating cycles loss | I.L changed≤0.1dB | |||
| Durability | >1000 cycles | |||
Company Profile:
Shandong Yibo Optronics Technology Co., Ltd. (Ebocom®), established in 2012, is located in the beautiful spring city
of Jinan, covering an area of 26,600 ㎡ . It is a high-tech enterprise focusing on the research and development, production, sales and service of optical cables and communication equipment. Ebocom® is committed to the research, development and application of optical cable products and communication
products. Our products include various types of optical cables (outdoor/indoor optical cables, ADSS, OPGW, mining
cables, FTTH drop cables, patch cord and pigtails) as well as optical cable-related connectors, accessories and
equipment. Widely used in telecom operators, data centers, enterprise networks and other communication
infrastructure fields. The products strictly implement national standards and have obtained ISO9001, ISO14001, ISO45001, ISO50001, TLC certification, and National Radio and Television Administration network access certification. It also has 3 invention patents and 27 utility model patents. Ebocom® focus on R&D innovation and constantly pursue advancement in technology to meet the changing needs
of our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc.
