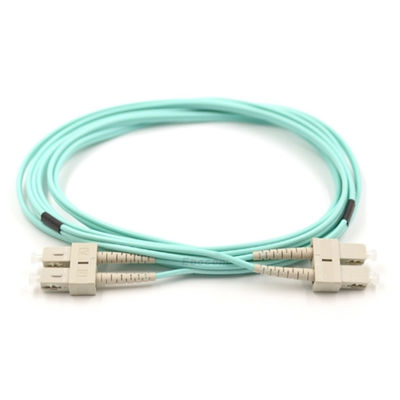

OM3 SC/APC SC/UPC Fiber Optic Patch Cord 1m 2m 3m om3 om4 Network Equipment indoor high speed internet LANconstruction
1m Fiber Optic Patch Cord
Introduction:
Fiber patch cables are highly durable and designed to provide flexible interconnections to active equipment, passive optical devices, and cross-connects with minimal interference and maximum confidentiality. They are ideal for a wide range of applications, including optical fiber communication systems, optical access networks, fiber optic data transmission, optical fiber CATV, local area network (LAN), and test equipment.
Features:
– Length: Available in customized lengths ranging from 1M to 200M as well as standard lengths.
– Strength: High strength aramid yarn strength members for easy handling and installation.
– Insertion loss (IL): Less than 0.2dB
– Return loss (RL): UPC > 50dB, APC > 65dB
– Repeatability and Exchangeability: Good in repeatability and exchangeability for simplicity and versatility.
– Interference and Confidentiality: Small signal interference and strong confidentiality for optimal performance.
– Environmental Sensitivity: Low environmental sensitivity for reliable use in various conditions.
Application:
These armored fiber patch cables are suitable for a variety of applications and industries, including:
– Optical Fiber Communication Systems: Efficient data transmission in telecommunications and networking.
– Optical Access Network: High-quality connectivity for optical fiber networks.
– Fiber Optic Data Transmission: High-speed and reliable data transmission over long distances.
– Optical Fiber CATV: High-quality connectivity for cable television systems.
– Local Area Network (LAN): High-speed and reliable data transmission between devices in limited areas.
– Test Equipment: Reliable connectivity for technical equipment testing.
Technical specifications:
| Pigtail Connector | PC (SM) | UPC (SM) | APC (SM) | MM |
| Return Loss (dB) | ≥45 | ≥50 | ≥60 | ≥35 |
| Insertion Loss (dB) | ≤0.2 (max≤0.3) | |||
| Repeatability (dB) | ≤0.1 | |||
| Durability(1/Matings) | ≥500 | |||
| Operation Temperature (°C) | -25~+70 | |||
| Tensile Strength (N) | ≥90 (Φ3.0), ≥70 (Φ2.0), Φ0.9 | |||
| Fiber | 9/125um, 50/125um,62.5/125um,ect | |||
| diameter | 0.9mm 2.0mm, 3.0mm etc | |||
| Cable material | PVC, LSZH | |||
| Cores | Simplex, duplex, 4cores, 6cores, 8cores, 12cores etc | |||
Company Profile:
Shandong Yibo Optronics Technology Co., Ltd. (Ebocom®), established in 2012, is located in the beautiful spring city
of Jinan, covering an area of 26,600 ㎡ . It is a high-tech enterprise focusing on the research and development, production, sales and service of optical cables and communication equipment. Ebocom® is committed to the research, development and application of optical cable products and communication
products. Our products include various types of optical cables (outdoor/indoor optical cables, ADSS, OPGW, mining
cables, FTTH drop cables, patch cord and pigtails) as well as optical cable-related connectors, accessories and
equipment. Widely used in telecom operators, data centers, enterprise networks and other communication
infrastructure fields. The products strictly implement national standards and have obtained ISO9001, ISO14001, ISO45001, ISO50001, TLC certification, and National Radio and Television Administration network access certification. It also has 3 invention patents and 27 utility model patents. Ebocom® focus on R&D innovation and constantly pursue advancement in technology to meet the changing needs
of our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc.
