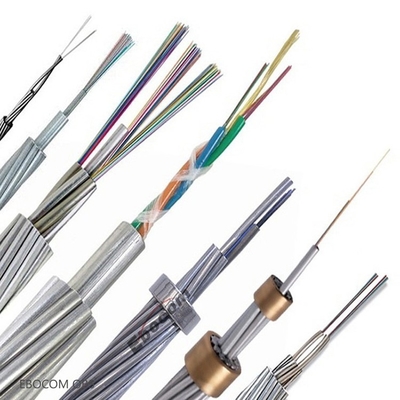

Opgw outdoor aerial fiber optical cable 12 24 48 core ground wire communication wire single jacket fibre optica cable
12 core OPGW Fiber Optic Cable
,48 core OPGW Fiber Optic Cable
,24 core OPGW Fiber Optic Cable

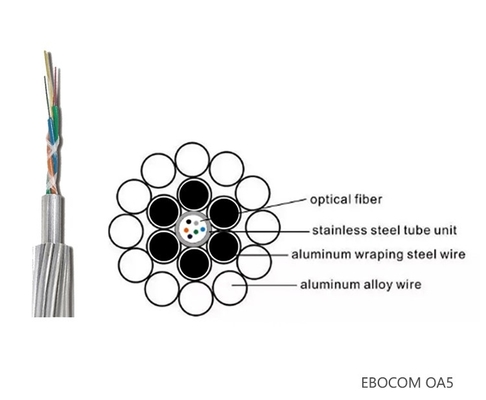

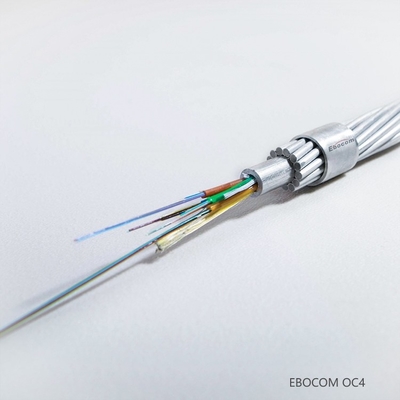

OPGW optical fiber, also known as Optical Fiber Composite te Overload Ground Wire (also known as fiber optic composite overhead ground wire). By placing optical fibers in the ground wire of an overhead high-voltage transmission line, it is used to form fiber optic communication on the transmission line.This structure combines the dual functions of ground wire and communication, commonly referred to as OPGW fiber optical cable.
Main features of OPGW cable:
1. High quality standard design, testing and production, using Class A materials to ensure long-term reliability；
2. Easy maintenance, easy line span, its mechanical properties can meet the large line span; The outer layer of OPGW is metal-armoured, which has no effect on high voltage corrosion and degradation；
3. The construction of OPGW must be power outage, resulting in greater losses, so the construction of high-voltage lines above 110kv must use OPGW;
4. OPGW cable is mainly used for 500KV, 220KV and 110KV 35KV lines, limited by power failure, safety and other factors, mostly used for new lines；
5. Sealed chrome steel tube affords brilliant moisture and intense environmental safety for optical fiber.
OPGW ground wire Application:
OPGW optical cables are used in the power industry, power transmission and distribution lines (i.e. 500KV, 220KV, 110KV voltage level lines), voice, video, data transmission, SCADA networks, Ariel ground wires, and dark fiber leasing.
|
No.
|
Items
|
Unit
|
Specification
|
|
|
G.652D
|
||||
|
1
|
Mode Field Diameter
|
1310nm
|
μm
|
9.2±0.4
|
|
1550nm
|
μm
|
10.4±0.5
|
||
|
2
|
Cladding Diameter
|
μm
|
124.8±0.7
|
|
|
3
|
Cladding Non-Circularity
|
%
|
≤0.7
|
|
|
4
|
Core-Cladding Concentricity Error
|
μm
|
≤0.5
|
|
|
5
|
Coating Diameter
|
μm
|
245±5
|
|
|
6
|
Coating Non-Circularity
|
%
|
≤6.0
|
|
|
7
|
Cladding-Coating Concentricity Error
|
μm
|
≤12.0
|
|
|
8
|
Cable Cutoff Wavelength
|
nm
|
λcc≤1260
|
|
|
9
|
Attenuation(max.)
|
1310nm
|
dB/km
|
≤0.36
|
|
1550nm
|
dB/km
|
≤0.22
|
||
Company Profile:
Shandong Yibo Optronics Technology Co., Ltd. (Ebocom®), established in 2012, is located in the beautiful spring city
of Jinan, covering an area of 26,600 ㎡ . It is a high-tech enterprise focusing on the research and development, production, sales and service of optical cables and communication equipment. Ebocom® is committed to the research, development and application of optical cable products and communication
products. Our products include various types of optical cables (outdoor/indoor optical cables, ADSS, OPGW, mining
cables, FTTH drop cables, patch cord and pigtails) as well as optical cable-related connectors, accessories and
equipment. Widely used in telecom operators, data centers, enterprise networks and other communication
infrastructure fields. The products strictly implement national standards and have obtained ISO9001, ISO14001, ISO45001, ISO50001, TLC certification, and National Radio and Television Administration network access certification. It also has 3 invention patents and 27 utility model patents. Ebocom® focus on R&D innovation and constantly pursue advancement in technology to meet the changing needs
of our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc.
