Optical Ground Wire OPGW optic fiber cable G652 fiber Water Repellent 24 core power price
24 core OPGW optic fiber cable
,G652 OPGW optic fiber cable
Overview
Optical fiber composite overhead ground wire (OPGW) is a type of cable used for overhead power lines. This cable integrates grounding and communication functions.

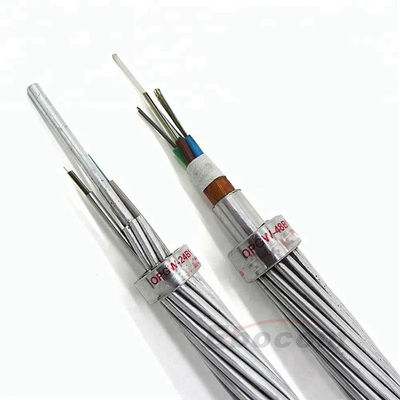

The OPGW cable is a tubular structure with one or more optical fibers wrapped in the tube and a layer of steel and aluminum wires. Mainly used for 110kV, 220kV, 500kV, 750kV and new overhead high-voltage transmission system communication lines.
It can also be used to replace existing ground wires in old overhead high-voltage transmission systems.
OPGW Cable Application
OPGW cables are laid between the tops of high-voltage power towers. The conductive portion of the cable is used to bind the adjacent towers to the ground and shield the high voltage conductors from lightning strikes. Special structure can be customized according to user needs.
Characteristics
- Large cable diameters are designed for larger fiber counts
- Stable structure and high reliability
- High tensile strength and short circuit current capacity to achieve the best balance of mechanical and electrical properties
- Optimized strand design to obtain excess length of secondary fiber
- The number of stranding layers can be designed as two or three layers.
- Single wire can be aluminum clad steel wire or a combination of aluminum alloy wire and aluminum wire.
Constructions and Performance
| Classification | Material | Value | |
|
Construction |
Optical Fibre | G652D/G655 etc. | 2 – 48 |
| Protection Tube | Stainless steel tube | 1.5 – 6mm | |
| Stranded Line | AS wire/AA wire/Al Rod | 1.5 – 6mm | |
| Max. Diameter | 18mm | ||
| Max. Cross Section | 200mm2 | ||
|
Characteristic |
According to the standards as DL/T 832, IEC60794-4-10, IEEE1138 | ||
| Max. Tensile Strength (RTS ) (kN) | 280 | ||
| Max. Crush Strength(N/100mm) | 2200 | ||
| Max. Short Current Capacity (40℃-200℃)(kA2s) | 100 | ||
| Min. Bending Radius (Dynamic) | 20D | ||
| Min. Bending Radius (Static) | 15D | ||
| Environment Performance | Installation (℃) | -30 to +60 | |
| Transportation and Operation (℃) | -40 to +70 | ||
