OPGW Fiber Optic Cable price Aerial Overhead Power Ground Wire G652D Stranded 12 24 36 48 Core
Aerial Overhead Power Ground Wire
,Stranded OPGW Fiber Optic Cable
The OPGW cable is made of aluminum clad steel wire, which is equivalent to a good conductor overhead ground wire. It can play a variety of roles in reducing the potential power supply flow of transmission lines, reducing power frequency overvoltage, and improving the interference and dangerous effects of power lines on communication lines. Because the optical fiber has the characteristics of anti-electromagnetic interference and light weight, it can be directly installed on the top of the transmission line tower without considering the best installation position, electromagnetic corrosion and other issues. Therefore, OPGW has higher reliability and superior mechanical properties.
OPGW Cable Application
- Aerial ground wire
- Power line communication system
OPGW Cable Characteristics
- High-quality design, testing and production standards, using grade A materials to ensure long-term reliability.
- Engineering support, supervision and provide own accessories hardware production line.
- Sealed stainless steel tube superior to protect optical fiber from moisture and extreme environments conditions such as lightning.
- The construction of OPGW must cut off the power supply, resulting in greater loss, so OPGW must be used to construct high-voltage lines above 110KV.
- Suitable for old line reconstruction.
OPGW Cable Dimension and Properties
(OPGW-24B1-50 as referenced)
| Item | Unit | Data | ||
| OPGW | / | OPGW 50mm2 | ||
| Fiber | / | 24B1 | ||

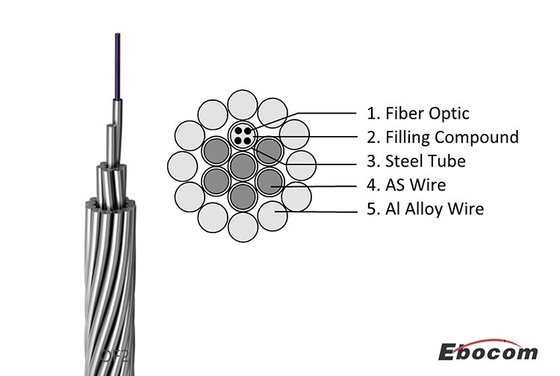

| Structure | Outer | ACS(LB20A) | PCS/ mm | 6/3.2 |
| Center | Stainless steel tube | PCS/ mm | 1/3.2 | |
| Section Cross | ACS | mm2 | 48.25 | |
| Section Cross | mm2 | 48.25 | ||
| Stranding direction | / | Right-hand | ||
| Diameter | mm | 9.6 | ||
| Weight | kg/km | 344.0 | ||
| Rate Tensile Strength(RTS) | kN | 58.2 | ||
| MAT(40%RTS) | kN | 23.28 | ||
| Everyday Stress(EDS)(25%RTS) | kN | 14.55 | ||
| Modulus of Elasticity(E-Modulus) | GPa | 162.0 | ||
| Thermal Elongation Coefficient | 10-6/℃ | 13.0 | ||
| 20℃ DC Resistance | Ω/km | 1.78 | ||
| 0.25 sec Short Time Current | kA | 6.9 | ||
| Short Time Current Capacity | kA2.S | 12 | ||
| Short circuit current allowed temperature range | ℃ | 40-200 | ||
| Minimum bend radius | mm | 20D | ||
| Pull weight ratio | km | 17.2 | ||
