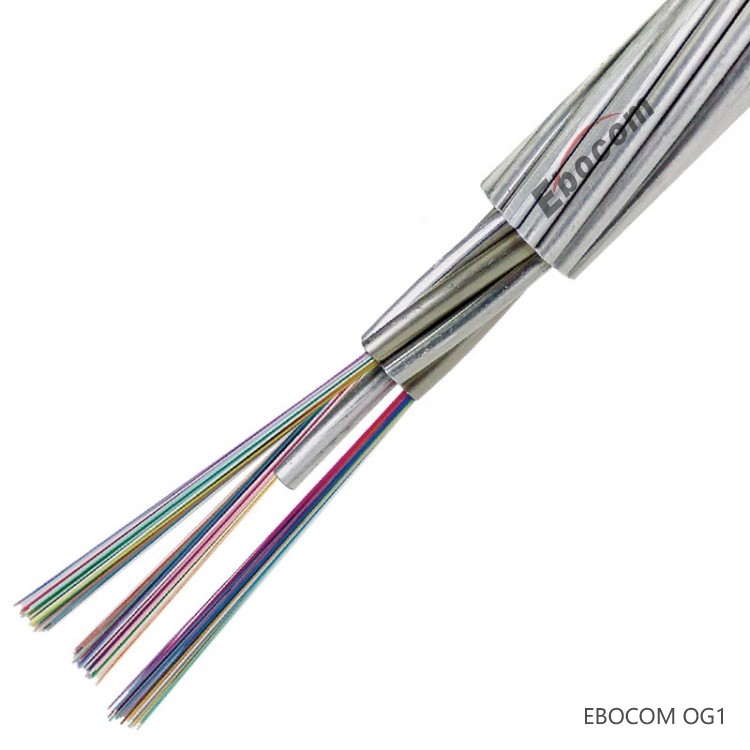

Opgw Optical Fiber Cable Composite Overhead Ground Wire Communication tower networking
Networking OPGW Fiber Optic Cable
OPGW optical cable is mainly used for high-voltage lines above 110KV. Due to the need for power outages and safety impacts when laying lines, it is mostly used for new lines.
The Application Of Opgw:
(1) It is easy to maintain, easy to solve the problem of crossing the line, and its mechanical characteristics can meet the large crossing line;
(2) The outer layer of OPGW is metal armor, which has no effect on high-voltage electrical corrosion and degradation;
(3) OPGW must be powered off during construction, and the power loss is large. OPGW should be used for new high-voltage lines;
The Characters Of Opgw:
- The fibers are well protected mechanically and thermally, use stainless steel pipe water blocking gel to provide protection;
- The diameter of OPGW optical cable is small, and the load pressure on the tower is small;
- Excellent lateral pressure resistance and outstanding short-circuit current capacity;
- Appropriate optical fiber excess length, so that the optical fiber does not bear stress when the optical cable is subjected to the maximum allowable stress;
- The layer-twisted structure provides excellent mechanical and electrical properties for optical cables;
- Can be used as ground wire.
Product Parameters:
| Core and nominal cross section | Conductor | Insulation thickness | Concentric conductor | Thickness of cable shield | Diameter | Weight of cable/km | Max DC resistance of conductor (20ºC) | |||
| mm2 | Number | Diameter mm | mm | Number | Diameter mm | mm | mm | kg/km | Ω/km | Ω/km (Concentric) |
| Copper conductor (IEC standard) | ||||||||||
| 2X10 | 7 | 1.35 | 1.55 | 20 | 0.85 | 1.40 | 11.80 | 290 | 1.83 | 1.90 |
| 2X16 | 7 | 1.70 | 1.55 | 32 | 0.85 | 1.40 | 12.84 | 420 | 1.15 | 1.20 |
| 2X25 | 7 | 2.14 | 1.60 | 29 | 1.13 | 1.50 | 15.02 | 630 | 0.727 | 0.76 |
| 2X35 | 19 | 1.53 | 1.65 | 27 | 1.35 | 1.60 | 17.00 | 832 | 0.524 | 0.55 |
| Aluminum alloy conductor (IEC standard) | ||||||||||
| 2X10 | 7 | 1.35 | 1.55 | 23 | 1.13 | 1.40 | 12.41 | 192 | 3.08 | 1.335 |
| 2X16 | 7 | 1.70 | 1.55 | 26 | 1.13 | 1.40 | 13.46 | 230 | 1.91 | 1.808 |
