High Tensile OPGW Fiber Optic Cable Aluminium Clad Stainless Steel Tube Armored networking communication
networking communication OPGW Fiber Optic Cable
,High Tensile OPGW Fiber Optic Cable
OPGW fiber optic cable is a cable that has a dual function, it can be a ground wire, and it can also transmit signals for communication. In the construction of the fiber optic cable, the optical fibers are not affected by environmental conditions (lightning, short circuits) to ensure stability and lifetime. The cable is designed to be installed on transmission and distribution lines.
OPGW Features:

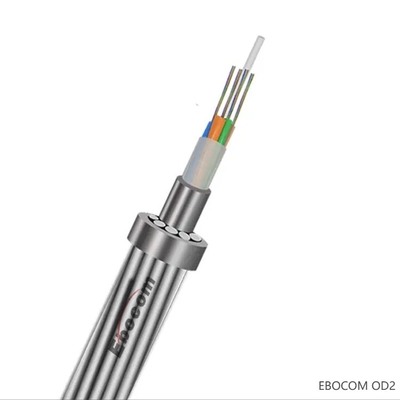

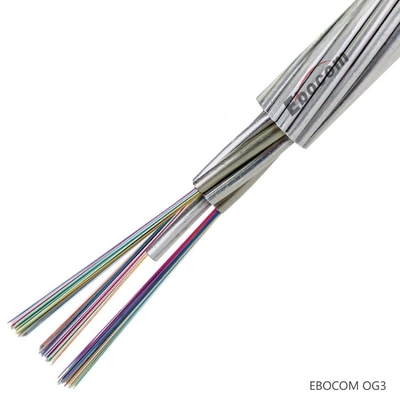

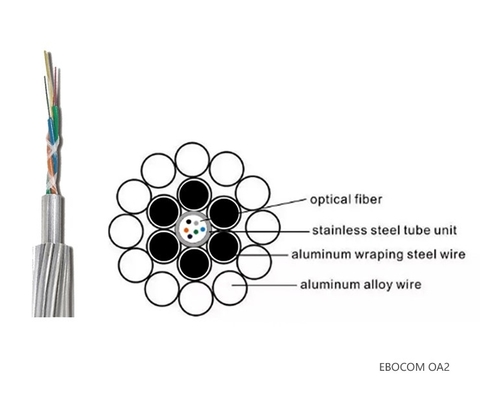

.Stainless steel optical fiber unit with central tube or stranded structure.
.Aluminum alloy wire and aluminum clad steel wire armor.
.The layers are coated with anti-corrosion grease.
.OPGW can support long-span and heavy-load installation.
.OPGW meets the mechanical and electrical requirements of the ground wire by adjusting the ratio of steel to aluminum.
Mechanical Parameters:
| Model | Cross Section | Cores | OD(mm) | Weight (KG/KM) | RTS (KN) | Short Circuit KA2s |
| OPGW-12(40.6; 4.7) | 32 | 12 | 7.8 | 243 | 40.6 | 4.7 |
| OPGW-24(54; 8.4) | 42 | 24 | 9 | 313 | 54 | 8.4 |
| OPGW-24(43.5; 10.6) | 42 | 24 | 9 | 284 | 43.5 | 10.6 |
| OPGW-36(55.9; 17.5) | 54 | 36 | 10.2 | 394 | 67.8 | 13.9 |
| OPGW-48(73.7: 17.5) | 61 | 48 | 10.8 | 438 | 73.7 | 17.5 |
| OPGW-48(55.1; 24.5) | 61 | 48 | 10.8 | 358 | 55.1 | 24.5 |
| OPGW-54(80.8; 21.7) | 68 | 54 | 11.4 | 485 | 80.8 | 21.7 |
| OPGW-60(54.5; 41.7) | 76 | 60 | 12 | 385 | 54.5 | 41.7 |
Company Profile:
Shandong Yibo Optronics Technology Co., Ltd. (Ebocom®), established in 2012, is located in the beautiful spring city
of Jinan, covering an area of 26,600 ㎡ . It is a high-tech enterprise focusing on the research and development, production, sales and service of optical cables and communication equipment. Ebocom® is committed to the research, development and application of optical cable products and communication
products. Our products include various types of optical cables (outdoor/indoor optical cables, ADSS, OPGW, mining
cables, FTTH drop cables, patch cord and pigtails) as well as optical cable-related connectors, accessories and
equipment. Widely used in telecom operators, data centers, enterprise networks and other communication
infrastructure fields. The products strictly implement national standards and have obtained ISO9001, ISO14001, ISO45001, ISO50001, TLC certification, and National Radio and Television Administration network access certification. It also has 3 invention patents and 27 utility model patents. Ebocom® focus on R&D innovation and constantly pursue advancement in technology to meet the changing needs
of our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc.
