Opgw Cable Ground Wire Stranded Fibra 6 8 12 16 24 36 48 60 72core tension low price OPGW
72core OPGW Cable Ground Wire

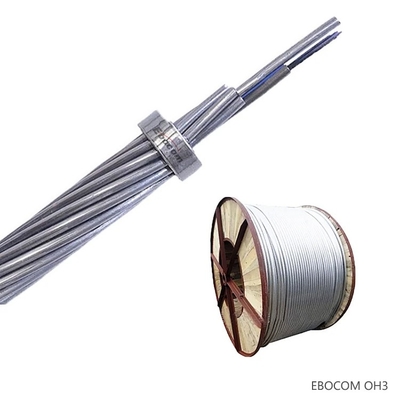

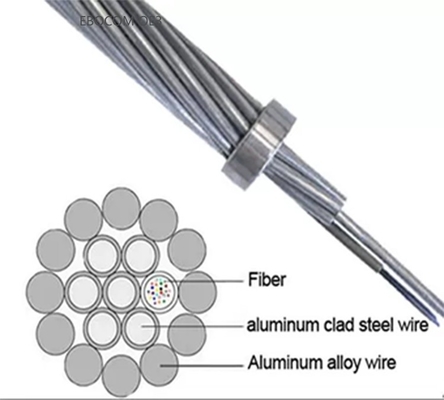

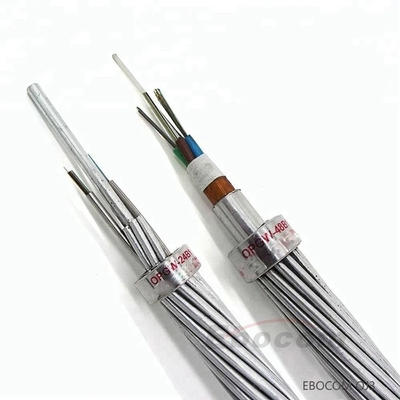

Stranded OPGW optical cable – the optical fiber is loosely placed in a sealed, water-blocking stainless steel tube and filled with water-blocking cable paste, and two or three stainless steel optical tubes are distributed in the inner layer of the multi-layer optical cable in a top shape. Stranded optical cables are mostly used in the case of a very high number of optical fibers, generally greater than 48, up to 144. Stranded fiber optic cable can meet the requirements of huge crossover and large current capacity.
OPGW Fiber Cable Features:
- The stainless steel tube optical fiber unit is stranded with other metal wires at the same time;
- Place the optical fiber in the stainless steel tube to obtain a better excess length, and at the same time, the stainless steel optical fiber unit of the layered structure is located on the second layer, which produces a larger and more stable tensile excess length through twisting;
- Precisely designed cable cross-section to ensure the electrical performance, mechanical and physical properties and thermal stability of the cable;
Application:
OPGW optical cables are mainly used on 500KV, 220KV, and 110KV voltage level lines. Due to line power outages, safety and other factors, they are mostly used on new lines.
MainTechnical Parameters:
Mechanical performance
| Minimum Bending Radius | Installation: 20×OD
Working: 10×OD |
| Crush Resistance | 875N/cm (500lb/in 3.5N/cm (Lg) |
| Maximum bearing pressure | 2000N |
| Temp. Range | Operating Temperature Range: -40℃ to +70℃ Storage Temperature Range: -50℃ to +70℃ |
| Twist (Torsion) | 180 x 10times, 125 x OD |
| Circular winding | 25 cycles for armoured cables
100 cycles for unarmoured cables |
| Repeated impact force | 2.9 N.m (J) 3*2 impacts |
