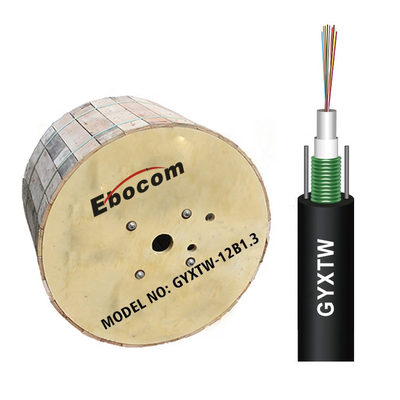

GYXTW Single-mode 2-12 Core Steel Tape Armored Fiber Optic Cable with G652D PE for LAN Communication
PE Fiber Optic Cable
,Steel Tape Armored Fiber Optic Cable
,LAN Communication Fiber Optic Cable

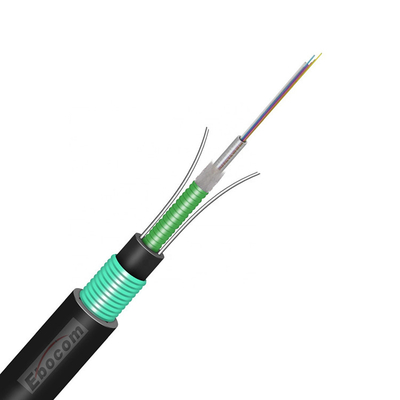

GYXTW optical cable, central tube type (2~12 cores), the tube contains fiber core and grease, plus steel tape armor, and PE outer sheath prevents two reinforced parallel steel wires. Suitable for duct or overhead applications. Tubes contain optical fibers that are color-coded according to a color-coding scheme. Generally speaking, G652D single-mode fiber is more widely used.
Application
This cable is ideal for in long distance and inter office communication in strong current zone, as well as power transmission system. The built in suspension stranded rope provides high tensile strength, enabling the cable suited for large span installation, resulting in time and installation cost savings. The suspension wire, being an integral part of the cable, is easily available for gripping, fastening and pulling. This cable is featured of its lightness, low dispersion and high tensile strength.
Product application
1. Adopted to outdoor distribution
2. Suitable for aerial, pipeline laying method
3. Long distance and local area network communication
Mechanical & Environmental Characteristics
| ITEM | Value |
| Max. Tensile Load (Short Term) | 2000N |
| Max. Tensile Load (Long Term) | 1000N |
| Max. Crush Load (Short Term) | 1000N/100mm |
| Max Crush Load (Long Term) | 300N/100mm |
| UL Fire Rated | OFNR |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Sheath Material | Standard: PE Optional: LSZH or other |
