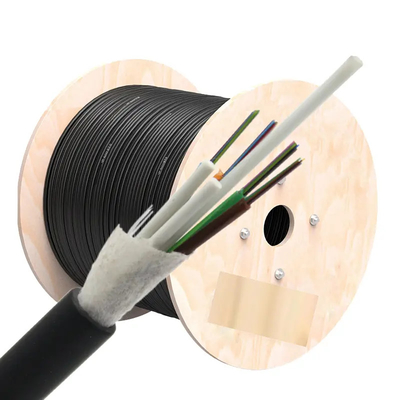

Aerial GYFTY Optical Fiber Cable 2-144core Non-Armoured 652D PE jacket for self supporing
| Place of Origin | Shandong，China |
|---|---|
| Brand Name | EBOCOM |
| Certification | ISO |
| Model Number | GYFTY |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.038/M ≥5000m $0.034/M |
| Packaging Details | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 5-8 days |
| Payment Terms | T/T |
| Supply Ability | 5000KMS/day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Place Of Origin | Shandong, China | Brand Name | Ebocom Or OEM |
|---|---|---|---|
| Model Number | GYFTY-24B1 | Fiber Type | G652D ,G657A1,G657A2 |
| Product Name | GYFTY Optic Fiber Cable | Fiber Number | 4-144core |
| Jacket | PE,HDPE,LSZH |
Product Description
GYFTY Cable-
Outdoor optical cable for communication with nonmetallic(FRP) reinforced member, loose tube stranding with filler and polyethylene outer sheath.
GYFTY Cable Characteristic:
1.Select high-quality optical fiber to ensure excellent transmission performance.
2.Control the excess length of optical fiber to ensure that the optical cable has excellent mechanical characteristics and temperature characteristics.
3.Strict process and raw material control to ensure stable operation of optical cable.
4.The loose tube is filled with special ointment to protect the optical fiber.
5.The center is a non-metallic reinforced member (FRP), which avoids the lightning induced breakdown between the longitudinal wrapped steel strip and the central reinforcing member.
GYFTY Cable Performance index:
Application scope: suitable for long distance communication and inter office communication
Laying method: Aerial/overhead
Working temperature: – 40 ºC~ + 70 ºC

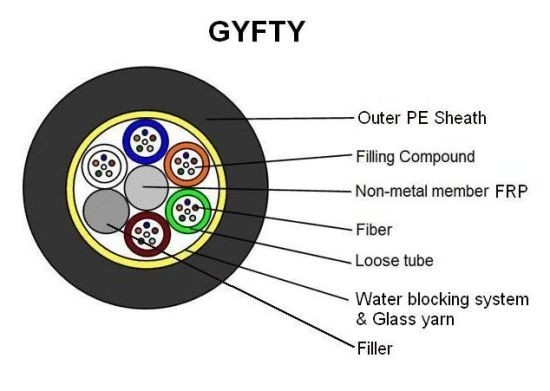

GYFTY Cable Main structure parameter:
| Fiber count | 2-144 | |
| Optical fiber | Diameter(±1µm) | 125µm |
| Coating diameter(±5µm) | 250µm | |
| Loose tube | Diameter(mm) | 1.6mm |
| Material | PBT/PP | |
| Strength member | Reinforcement | FRP/FRP with PE cover |
| Diameter(mm) | 1.4mm | |
| Protective material | Water blocking tape | |
| Outer sheath | Material | MDPE/HDPE |
| Thickness(mm) | 1.6mm | |
| Color | Black | |
