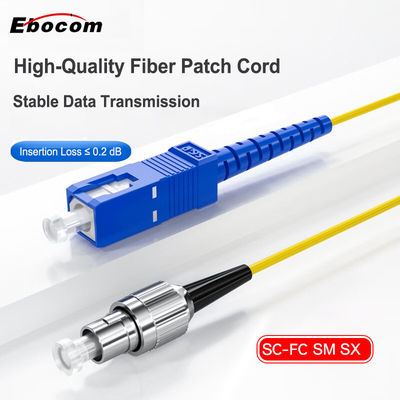

SC FC LC ST UPC APC fiber Patch Cord SM Single Mode G652D G657A1 G657A2 2.0mm 3.0mm 1m 1.5m 3m 5m 10m 50m 100m
1m fiber Patch Cord
,100m fiber Patch Cord
,3m fiber Patch Cord
Optic Fiber Patch Cord
Optical fiber patch cord is a detachable connection between optical fibers. It precisely connects the two end faces of optical fibers so that the light energy output by the emitting optical fiber can be coupled to the receiving optical fiber to the maximum extent. And minimize the impact on the system due to its intervention in the optical link.
Applications:
- Fiber optic communication system
- LAN, Datacenter, CATV
- Optical fiber testing equipment
- Telecommunication network
Characteristics:
- Different type of connectors are available;
- PC/APC/UPC polish types;
- Low insertion loss, high return loss;
- Repeated insertion and removal performance is excellent and easy to use;
- Cable diameter: 2.0mm, 3.0mm.
Technical Parameters:
| Mode Type | Single Mode | Multi Mode |
| Grinding | UPC/APC/PC | PC |
| Insertion loss | ≤0.2dB | ≤0.3dB/0.5dB |
| Return Loss |
PC≥45dB UPC≥50dB APC≥60dB |
/ |
| Repetitive | ≤0.2dB | |
| Interchangeability | ≤0.2dB | |
| Temperature Range | -40℃~+80 ℃ | |
(Remark: The above parameters are for reference only)
Sheath:
Environmentally friendly low smoke halogen-free sheath (LSZH). Abrasion and corrosion-resistant, and odor-free.
If required, we can also support flame retardant LSZH or PVC sheath.
