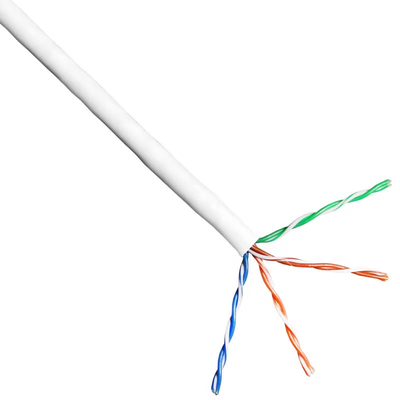

Cat5e cat6 utp stp Cable 100% pass fluke test 26AWG Super slim 1m 2m 3m 5m 10m

Place of Origin Shandong,China
Brand Name EBOCOM
Certification ISO TLC
Model Number CAT5 UTP
Minimum Order Quantity 3050m
Price EXW ≥3050m $0.2/M ≥6010m $0.19/M
Packaging Details 305m/box,4boxes/carton,
Delivery Time 5-8 day
Payment Terms T/T
Supply Ability 5000KMS/day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Minimum Order Quantity 3050m Packaging Details 305m/box
Delivery Time 7-15 Work Days Payment Terms L/C, T/T, Western Union
Place Of Origin Shandong ,China Brand Name Ebocom /OEM
Certification ISO9001,ISO45001,ISO14001 Model Number Cat5 Cable UTP
Copper Conductor 0.48/0.5/0.52 Diameter 0.4-0.6mm
Highlight

10m Cat5e Cable

,

26AWG Cat5e Cable

Leave a Message
Product Description

Product introduction:

Ethernet cables are a type of network cable like cats cat5e cat6 cat6e different types,which are used to work with Ethernet
ports to achieve hardwiring devices.And bring faster internet and more reliable connectivity.

Cat5e cat6 utp stp Cable 100% pass fluke test 26AWG Super slim 1m 2m 3m 5m 10m 0

A cat 5—or category 5 (5e, or 6)—is an Ethernet cable, or cabling used to support computer networks. It can transmit video and telephony signals in addition to standard computer data. The cat 5 is usually the bare minimum required for Hosted VoIP.

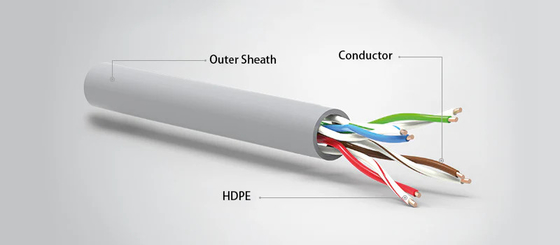

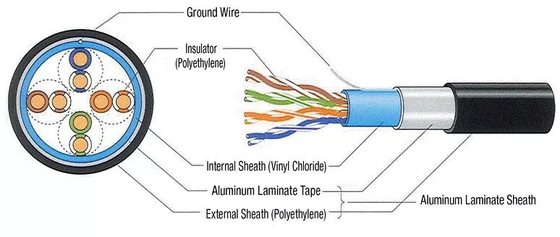

The cable is available in both stranded and solid conductor forms. The stranded form is more flexible and withstands more bending without breaking. Patch cables are stranded. Permanent wiring used in structured cabling is solid. The category and type of cable can be identified by the printing on the jacket.
The Category 5 specification requires conductors to be pure copper. There has been a rise in counterfeit cables, especially of the copper-clad aluminum (CCA) variety.This has exposed the manufacturers and installers of such fake cable to legal liabilities

Specifications
AWG (Gauge)
23AWG/24AWG/26AWG

Plug life
≥ 1000 times
Jacket Material
PVC, LSZH

Transmission speed
69%
Operating
-20 ℃~ 60 ℃(PVC)
-30 ℃~ 60 ℃(PE)

Pressure resistance
1000Vac

DC power supply
1.5 Amps
Length
Any length

DC resistance unbalance
≤ 5%
