GYXTC8S Self-Supporting Figure 8 Fiber Optic Cable With Central Loose Tube

  • GYXTC8S Self-Supporting Figure 8 Fiber Optic Cable With Central Loose Tube
  • GYXTC8S Self-Supporting Figure 8 Fiber Optic Cable With Central Loose Tube
  • GYXTC8S Self-Supporting Figure 8 Fiber Optic Cable With Central Loose Tube
Place of Origin China
Brand Name Ebocom
Certification ISO
Model Number GYXTC8S
Minimum Order Quantity 2000M
Price USD 0.05~0.1, Meter
Packaging Details Plywood Drum
Delivery Time 10-15 days
Payment Terms T/T, L/C, Western Union, MoneyGram
Supply Ability 80 KM per Day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Name GYXTC8S Installation Temperature -30°C To +60°C
Packing 2-4km/wooden Drum Life Time 25-30 Years
Installation Self- Supporting Aerial Fiber Range 2-24 Cores
Jacket Material Polyethylene (PE) Armored Steel Tape Armored
Factory Yes Fiber Model G652D G657A1 G657A2
Highlight

self-supporting figure 8 fiber optic cable

,

outdoor loose tube fiber cable

,

central loose tube fiber optic cable
You can tick the products you need and communicate with us in the message board.
Loose Tube
Leave a Message
Product Description

Product Overview

The GYXTC8S fiber optic cable is a self-supporting Figure-8 outdoor cable designed for aerial installation in telecom networks, FTTH backbone lines, CCTV transmission, and long-distance access projects.

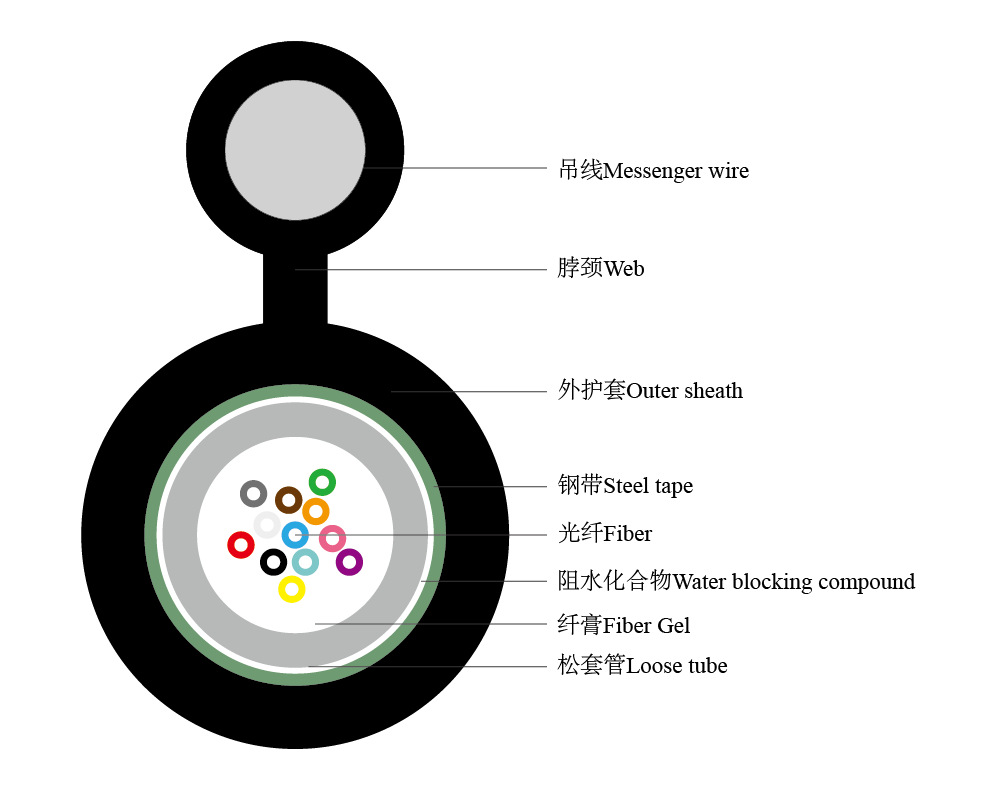

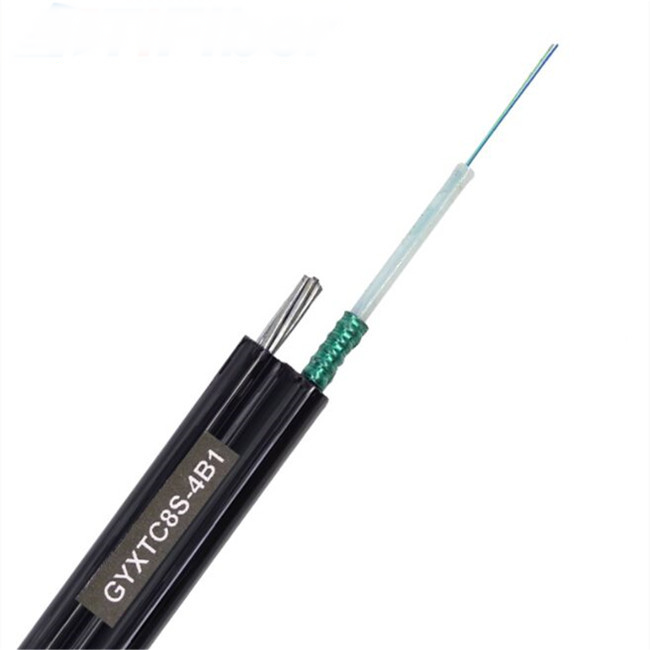

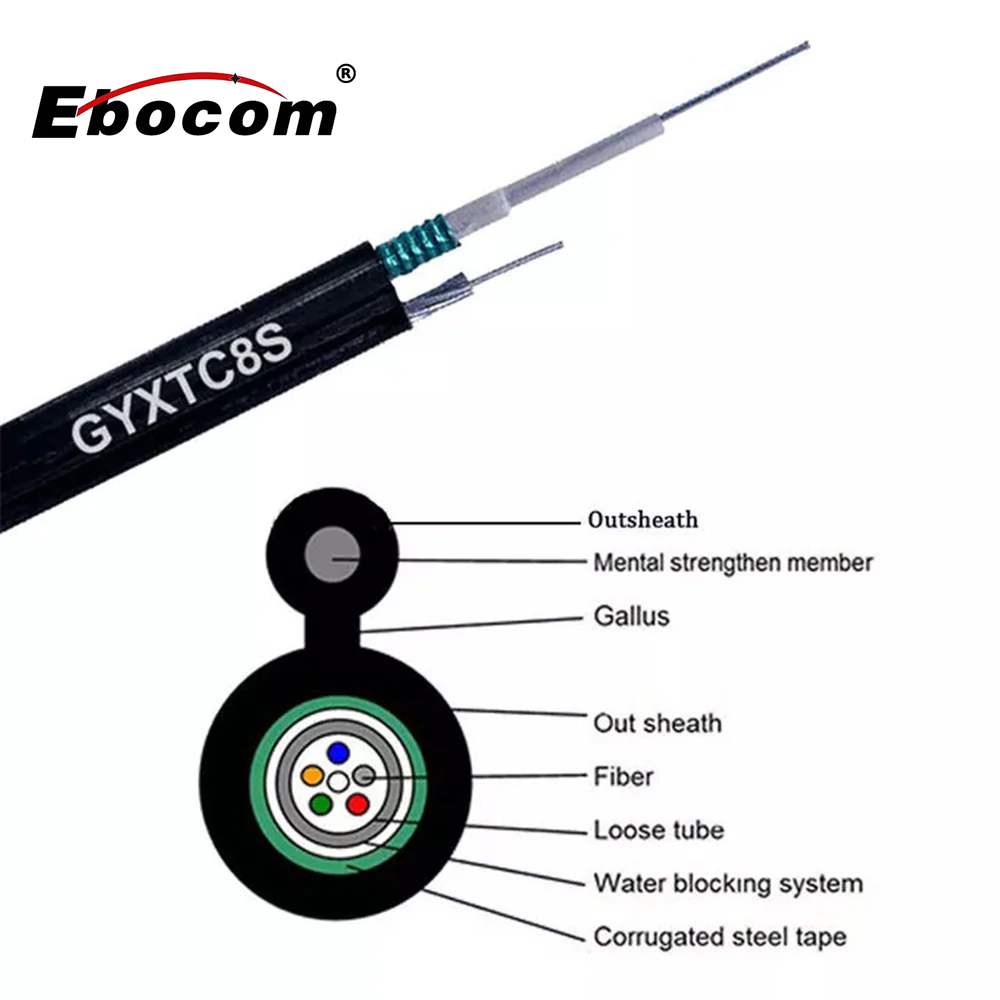

Its structure combines a central loose tube filled with gel, corrugated steel tape armor, and a separate messenger wire—either a galvanized steel strand or a single steel wire—forming a strong and reliable 8-shape profile ideal for pole-to-pole spans.

The GYXTC8S cable offers excellent mechanical strength, UV resistance, and moisture protection, making it one of the most popular choices for outdoor communication networks.

Key Features

  • Figure-8 self-supporting design with an independent messenger wire

  • Central loose tube structure, ideal for stability and easy fiber management

  • Corrugated steel tape armored (PSP) for enhanced crush resistance and rodent protection

  • Stable aerial performance, suitable for short and medium spans

  • PE outdoor jacket, UV-resistant and weatherproof

  • Water-blocking gel to prevent longitudinal moisture penetration

  • Messenger wire options:

    • 1× galvanized steel wire

    • 7-strand steel messenger (e.g., 7×1.0 mm or 7×0.3 mm)

Applications

  • Aerial installation on poles

  • FTTH / FTTB backbone distribution

  • CCTV security networks

  • Rural broadband projects

  • Municipal communication systems

  • Telecommunication long-distance transmission

Technical Specifications

Item Description
Cable Type GYXTC8S Self-Supporting Central Tube Outdoor Fiber Cable
Fiber Count 2–24 cores, optional
Fiber Type G.652D / G.657A1 / G.657A2 / OM2 / OM3 / OM4
Structure Central loose tube + corrugated steel tape armor
Messenger Wire Single steel wire or stranded steel wire (customizable)
Armoring PSP (Polymer-Coated Steel Tape)
Outer Jacket Black PE
Installation Method Aerial, Figure-8 self-supported
Operating Temperature –40°C to +70°C
Span Capability Typically 50–300 meters (depending on messenger wire type)
Moisture Protection Water-blocking gel inside loose tube

GYXTC8S Self-Supporting Figure 8 Fiber Optic Cable With Central Loose Tube 0

Why Choose Ebocom?

  • 12+ years of manufacturing experience in aerial fiber optic cables

  • Large-scale production capacity, ensuring stable supply and quick delivery

  • Strict quality control, with full fiber testing and material inspection

  • OEM/ODM support, including messenger type, fiber count, printing, packaging

  • Exported to Southeast Asia, Africa, Europe, Middle East, South America
