RVVP Shielded Flexible Cable Rvvp Cable Conductor Insulation for internet Construction
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | RVVP Cable | Conductor Material | PVC |
|---|---|---|---|
| Insulation Material | PVC | Color | Black |
| Type | Low Voltage | Minimum Order Quantity | 100M |
| Brand Name | Ebocom /OEM | Payment Terms | L/C, T/T, |
| Certification | ISO9001,ISO45001,ISO14001 | Place Of Origin | Shandong ,China |
| Highlight | Shielded Flexible Cable Rvvp,Rvvp Cable Conductor Insulation,internet Construction Rvvp Cable |
||
Product Description
Product introduction:

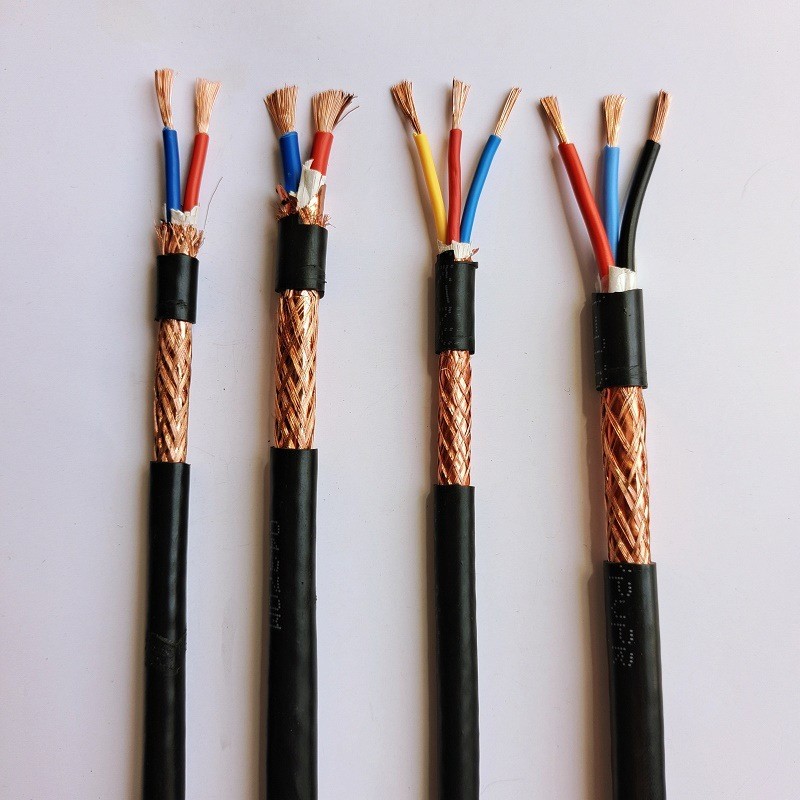

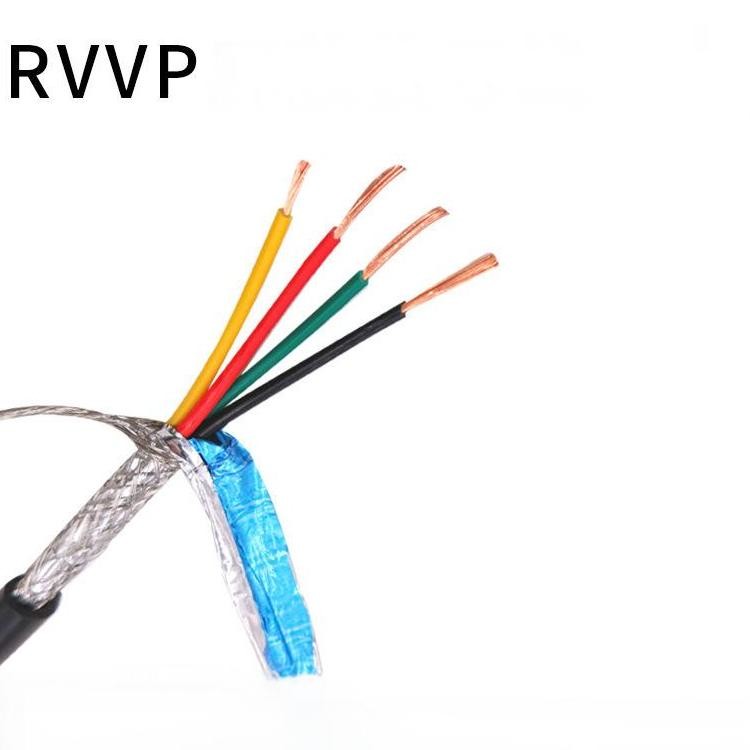

RVVP. the full name is copper core PVC insulated PVC shielded flexible cable. It is suitable for communication, audio, broadcasting, audio system, anti-theft alarm system, intelligent automation system, automatic meter reading system, fire protection system, etc.
Characteristics of RVVP Cable:
1) Conductor: class 5 plain copper
2) Sectional area: 0.5~10 mm2
3) Insulation: PVC
4) No. of cores: 4
5) Core identification: different insulation colors
6) Screen: braided copper wire (different covering rate available as per customer's requirements)
7) Outer sheath: PVC
8) Max. working temperature: 70 degrees
2) Sectional area: 0.5~10 mm2
3) Insulation: PVC
4) No. of cores: 4
5) Core identification: different insulation colors
6) Screen: braided copper wire (different covering rate available as per customer's requirements)
7) Outer sheath: PVC
8) Max. working temperature: 70 degrees
Model NO.
RVVP
Application
Heating
Conductor Material
Copper
Sheath Material
PVC
Insulation Material
PVC
Material Shape
Round Wire
Range of Application
Flame Retardant
Certification
ISO9001, RoHS
Brand
EBOCOM
Conductor
Tinned Copper or Bare Copper
Voltage
300V
MOQ
1 Roll
Lead Time
3-7working Days
Packing Rate
100m
Transport Package
305m/Roll, 610m/Roll.
Specification
20cmx20cmx10cm
Origin
JINAN
HS Code
8544492900
Production Capacity
1000000m/Year
Application:
These are installed there, where the extreme requirements for the cables are necessary. The selected materials and lay-up technique permit these high flexible cables for permanent application in drag chains for long distances, high and low speed of movements. These high flexible PVC control cables are suitable for shift- and bending stresses in machines and machine tool constructions.
These are installed in dry, moist rooms and in open air with free movement without tensile stress or forced movements. TRVVP-CY200 PVC cables are particularly suitable for the interference-free transmission in instrumentation and control engineering applications.
