GYFXTY Non-Metallic Outdoor FTTH Round Fiber Optic Cable with FRP Strength Member
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Tensile Strength | 1KN 1.5KN 2KN 3KN | Fiber Type | Single Mode |
|---|---|---|---|
| FRP | 0.5-2.8mm | Cable Length | 1km 2km |
| Model Name | Drop Cable | Outer Sheath Material | PE/LSZH |
| Cable Color | Black | ||
| Highlight | Outdoor FTTH Round Fiber Optic Cable,FRP Strength Member FTTH Round Cable,GYFXTY FTTH Round Fiber Optic Cable |
||
Product Description
Product Description

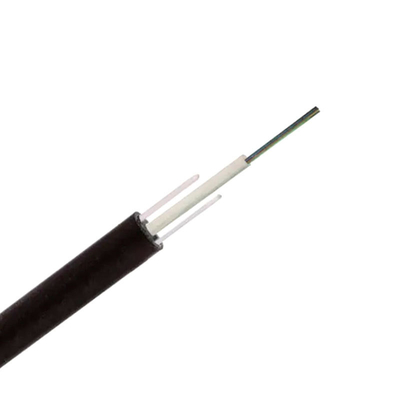

The GYFXTY fiber optic cable is a non-metallic outdoor drop cable designed for FTTH (Fiber to the Home) and other last-mile optical network deployments. Built with a central loose tube structure, it houses up to 24 single-mode fibers, filled with water-blocking gel to ensure excellent moisture resistance.
Two parallel FRP (Fiber Reinforced Plastic) strength members provide high tensile performance, while maintaining a lightweight, rodent-proof, and non-conductive design, making GYFXTY ideal for areas with electrical interference or strict safety requirements. The PE outer sheath is UV-resistant and suitable for aerial, duct, and facade installation.
Whether you're deploying in urban residential areas or rural fiber networks, GYFXTY offers a cost-effective, corrosion-resistant, and easy-to-install solution.
Key Features
Non-metallic structure – No electromagnetic interference, lightning-safe
Central loose tube design – Ensures stable fiber protection and easy access
Up to 24 fiber cores – Supports high-capacity FTTH and outdoor distribution
Two FRP strength members – Customizable for required tensile strength
UV-resistant PE jacket – Long-lasting durability in outdoor conditions
Lightweight & compact – Ideal for aerial and wall-mounted applications
Common Applications
-
FTTH and FTTx access networks
-
Last-mile fiber drop for residential or commercial buildings
-
Outdoor aerial, duct, and facade cabling
-
Campus, village broadband, and smart community projects
-
Electrical noise-sensitive environments requiring non-metallic solutions
Technical Specifications
| Parameter | Details |
|---|---|
| Product Type | GYFXTY Non-metallic Outdoor FTTH Drop Cable |
| Fiber Type | Single Mode (G.652D / G.657A1 / G.657A2) |
| Fiber Count | 2 / 4 / 6 / 8 / 12 / 24 cores |

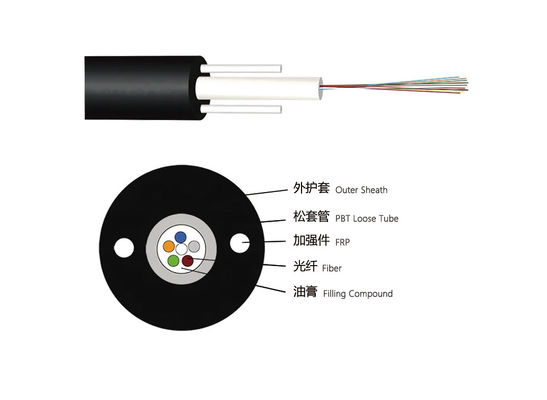

| Structure | Central loose tube, water-blocking filling compound |
| Strength Member | 2 × FRP (custom diameter based on tensile requirements) |
| Outer Sheath | UV-resistant black PE |
| Outer Diameter | Approx. 6.0 – 8.5 mm (depending on fiber count) |
| Operating Temperature | -40°C to +70°C |
| Installation Method | Aerial / Duct / Facade Mounting |
| Compliance Standards | IEC 60794, ITU-T G.652/G.657, RoHS, ISO9001 |
Why Choose GYFXTY Cable?
As a professional fiber optic cable manufacturer, we offer flexible OEM/ODM support, including custom fiber count, jacket color, FRP specification, and packaging options. Our GYFXTY cable is widely used by telecom operators and contractors for reliable and safe FTTH rollouts.
Fast shipping | Custom design | ISO-certified production
