GYFXTY Uni-Tube All Dielectric Drop Cable FRP Wires Uni-Tube Fiber Optic Cable
FRP Wires Drop Cable
,GYFXTY Uni-Tube Drop Cable
,All Dielectric Drop Cable
Product Overview

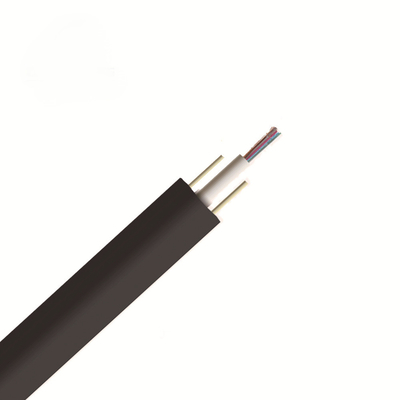

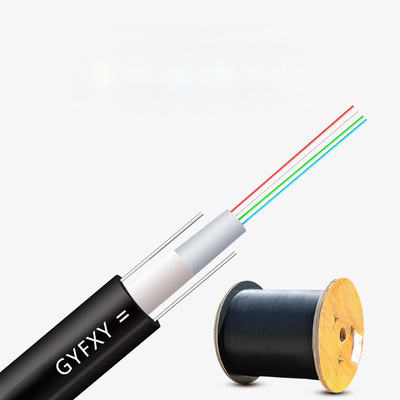

The GYFXTY fiber optic cable is a non-metallic, weather-resistant optical cable specifically designed for outdoor FTTH drop installations and other short to medium-distance network applications. Its central loose tube holds up to 24 single-mode fibers, filled with water-blocking compound for enhanced protection.
Two parallel Fiber Reinforced Plastic (FRP) rods serve as strength members, ensuring excellent tensile performance while keeping the cable lightweight and completely non-conductive—ideal for areas where electromagnetic interference must be avoided. The outer UV-resistant PE sheath ensures long-term durability in harsh outdoor conditions.
Key Advantages
-
All-dielectric design – 100% non-metallic, safe for high-voltage areas
-
Up to 24 fibers – Efficient for FTTH and distribution networks
-
Dual FRP strength members – Customized for different tension requirements
-
Central loose tube structure – Compact, stable, and easy to handle
-
Moisture-resistant filling – Prevents water ingress, extends lifespan
-
UV-stable PE jacket – Protects against weather, aging, and rodent damage
Ideal Use Cases
-
FTTH/FTTB last-mile drop connections
-
Access network and fiber distribution systems
-
Outdoor wall-mounted or façade installations
-
Environments with EMI (electromagnetic interference) sensitivity
-
Rural broadband expansion, smart community wiring
Technical Specifications
| Parameter | Details |
|---|---|
| Fiber Type | Single Mode (G.652D / G.657A1 / G.657A2) |
| Fiber Count | 2 ~ 24 cores |

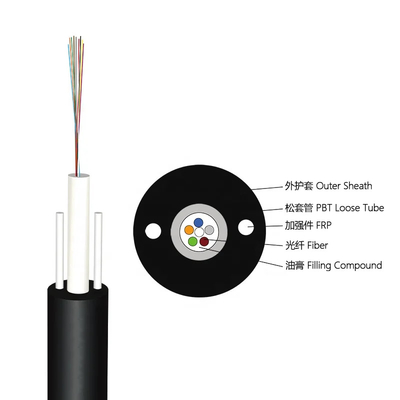

| Cable Structure | Central loose tube, filled with water-blocking gel |
| Strength Members | 2 × FRP (customizable size) |
| Sheath Material | PE, UV-resistant, black |
| Outer Diameter | Approx. 6.0 – 8.5 mm (varies by core count & FRP) |
| Operating Temp. Range | -40°C to +70°C |
| Installation Method | Aerial, duct, wall mounting, outdoor drop |
| Certifications | IEC 60794, ISO9001, RoHS, CE |
Why Choose This Cable?
-
Zero metal = zero conductivity – Safe near electrical systems
-
Compact and lightweight – Lower transportation & installation costs
-
Flexible deployment – Suitable for pole, duct, or wall-based systems
-
OEM supported – Custom printing, sheath color, fiber type, FRP strength
