Overhead OPGW96B1-80 Ground Wire Cable 48 72 288 Core For Tower KV Telecommunication
| Place of Origin | Shandong，China |
|---|---|
| Brand Name | EBOCOM |
| Certification | ISO TLC |
| Model Number | OPGW-72B1-40[51;9] |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $1100/KM ≥10000m $1108/KM |
| Packaging Details | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 5-8 days |
| Payment Terms | T/T |
| Supply Ability | 4000MS/day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | OPGW | Cable Mode | Optical Ground Wire |
|---|---|---|---|
| Cable Type | Stranded Opgw Cable | Fiber Count | 24 48 Cores |
| Fiber Type | G652D/G657A1/G657A2 | Strength Member | Steel Wire FRP |
| Key Words | Optical Fiber Cable | Application | Overhead/Aerial |
Product Description
Product Description:
opticaler for the electrical utility's own purposes of protection and control of the transmission line, for the utility's own voice and data communication. Optical fibre ground wire (OPGW) is a dual-function optical cable. It aims to replace the traditional electrostatic/shielded/grounded wires on overhead transmission lines, and additionally contains optical fibres that can be used for telecommunications purposes. OPGW must be able to withstand the mechanical stress exerted on the overhead optical cable by environmental factors such as wind and ice. OPGW must also be able to handle electrical failures on transmission lines, provide grounding paths, and not damage the sensitive optical fibre inside the optical cable. The design of OPGW optical cable is composed of an optical fibre core (which may include a single-tube optical fibre unit depending on the number of optical fibre cores). The core is encapsulated in a sealed hardened aluminum tube, and the aluminum tube is covered with one or multiple layers of steel wire and/or alloy wire. The installation process is very similar to that of the wire installation process, but the pulley or pulley of the appropriate size must be used carefully to avoid damaging or squeezing the optical cable. After installation, when the optical cable needs to be connected, it is necessary to cut off the wire, expose the central aluminum tube, and easily cut it with the pipe cutting tool. Most users like to use colour-coded subunits because they make the preparation of the junction box very easy.

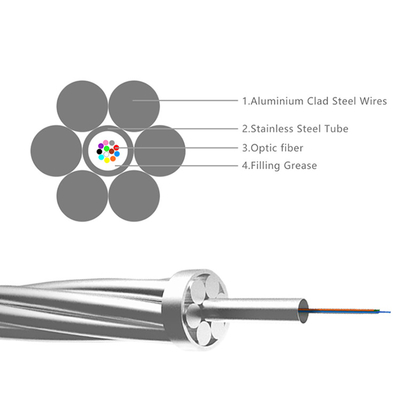

Structure & Technical Specifications:
