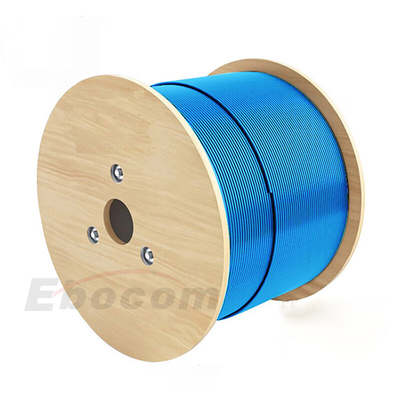

Flame Retardant Mining Fiber Cable 24 36 48 96 144 Cores for Mining Application
| Place of Origin | Shandong，China |
|---|---|
| Brand Name | EBOCOM |
| Certification | ISO TLC |
| Model Number | MGTSV |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.3/M ≥5000m $0.29/M |
| Packaging Details | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 7-15 days |
| Payment Terms | T/T |
| Supply Ability | 10KMS/day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cable Model | MGTSV Fiber Optic Cable | Strength Member | Steel Wire Tape |
|---|---|---|---|
| Material Of Jacket | PE Flame Retardant PE/lszh | Tube | Central Loose Tube |
| Bend Radius | Static 10*Cable-D Dynamic 20*Cable-D | Operating Temperature | -40°c~+70°c |
| Color | Black | Fiber Count | 4-288cores |
| Highlight | Mining Application Fiber Cable,Flame Retardant Mining Fiber Cable,48 Cores Mining Fiber Cable |
||
Product Description
Product description

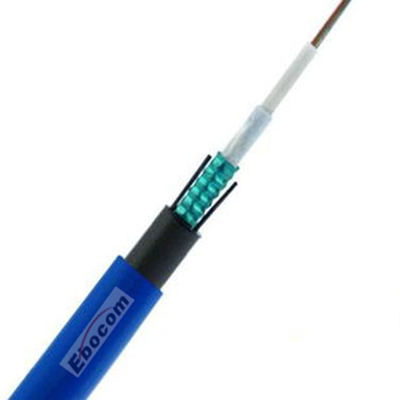

MGTSV optical fibre cable, optical fibre, 200μm or 250μm, is located in a loose tube made of high-modulus plastic. The tube is filled with waterproof filling compounds. The steel wire is located in the centre of the iron core and acts as a metal strength rod. The tube (and the filler) is strung into a compact round cable core around the strength component. The cable core is filled with filling compounds to prevent water from entering. PSP is applied vertically to the cable core, apply a thin PE inner sheath, and then complete the cable with the PE outer sheath.
Features
High strength loose tube has good performance of water proof and high strength
·Special tube filling compound ensure a critical protection of fiber
·Good crush resistance and flexibility
Structure parameters:
| Counts | 2-30 | 32-36 | 38-60 | 62-72 | 74-96 | 98-120 | 122-144 |
| Max.fiber counts per tube | 6 | 6 | 12 | 12 | 12 | 12 | 12 |
| Units(Tubes or Fillers) | 6 | 6 | 6 | 6 | 8 | 10 | 12 |
| Cable Diameter(mm) | 10.6 | 11.2 | 11.5 | 12.1 | 13 | 14.6 | 15.8 |
| Weight(Kg/km) | 74 | 75 | 75 | 75 | 100 | 120 | 143 |
| Fiber Type | G652D G657A1 A2 50/125 62.5/125 | ||||||
| Tensile Strength(N) | Long/Short Term:1900/4800 | ||||||
| Crush Resistance(N/100mm) | Long/Short Term:300/1000 | ||||||
| Bending Radius(mm) | Static/Dynamic:10D/20D | ||||||
| Temperature(ºC) | Storage /Operation:-40ºC~70ºCof our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc. | ||||||
