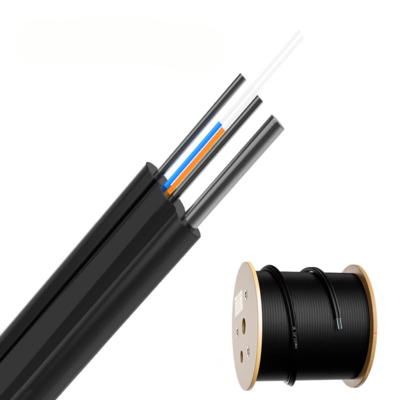

4 Core G657A1 Outdoor FTTH Drop Fiber Cable GJYXCH with 0.8mm Steel Wire Messenger
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Fiber Options | G657A1 | Application | FTTH FTTB FTTX Network |
|---|---|---|---|
| Color | Black & White | Jacket | LSZH/PVC |
| Strength Member | Steel Wire/FRP | Fiber Count | 4 Core |
| Length | 1km Or 2km | Oem | Available |
| Highlight | 4 core G657A1 FTTH drop cable,outdoor fiber optic cable with steel wire,0.8mm messenger FTTH drop cable |
||
You can tick the products you need and communicate with us in the message board.
| Loose Tube |
|---|
Product Description
Product Description
The 4-core GJYXCH FTTH outdoor drop cable is engineered for reliable last-mile fiber access in fiber-to-the-home (FTTH) networks. Built with bend-insensitive G657A1 optical fibers and steel strength members, it ensures excellent mechanical protection and long-distance aerial performance.
Key Features
-
4 G657A1 Bend-Insensitive Fibers – Ensures minimal bending loss and high stability
-
Steel Wire Reinforcement – With embedded dual steel wires and central rod for added tension resistance
-
Outdoor-Rated Jacket – Durable LSZH sheath resists UV, moisture, and aging
-
Quick Installation – Lightweight, flexible, and suitable for direct connection to FTTH terminals
-
Stable Performance – Optimized for voice, video, and data triple-play applications
Applications
-
Fiber-to-the-Home (FTTH) and Fiber-to-the-Building (FTTB)
-
Outdoor aerial or wall-mounted installations
-
Residential broadband deployment
-
Campus or apartment network access lines
Technical Specifications
| Item | Specification |
|---|---|
| Fiber Type | G657A1 Single Mode |
| Fiber Count | 4 Cores |

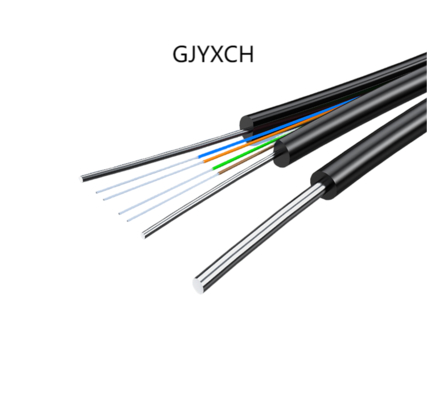

| Cable Type | Flat Drop Cable (GJYXCH) |
| Strength Member | 2 Steel Wires + 1 Central Steel Rod |
| Outer Sheath | UV Resistant LSZH, Black |
| Dimension | Approx. 5.2mm × 2.0mm |
| Tensile Strength | ≥ 1000N |
| Crush Resistance | ≥ 1000N/100mm |
| Bending Radius | Static ≥10×D / Dynamic ≥20×D |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +70°C |
Ebocom — Your Reliable Fiber Cable Supplier
Ebocom is a trusted fiber optic cable manufacturer with 10+ years of experience in outdoor and FTTH cable solutions. Our products are widely used across global network infrastructure projects and support:
OEM & Custom Printing
Flexible Packaging Options
Global Shipping
Complete Testing & Certification
