GJYXCH G652D 2 Core Drop Fiber Optic Cable Indoor Outdoor Black LSZH Jacket FTTH Aerial Installation
GJYXCH G652D fiber optic cable
,LSZH jacket FTTH drop cable
,aerial installation fiber optic cable
Product Title:
GJYXCH Drop Fiber Optic Cable – 1~4 Cores, Steel Wire Reinforced, Indoor/Outdoor FTTH Installation
Product Description:
Overview

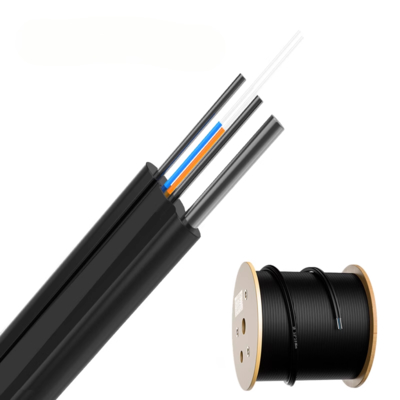

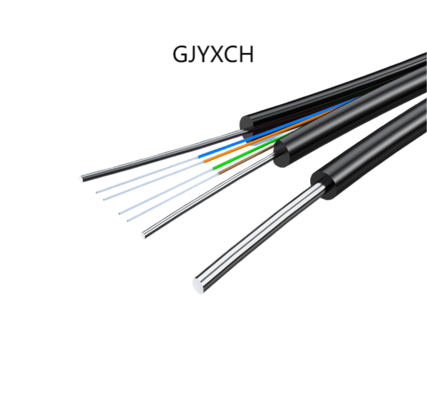

GJYXCH is a drop fiber optic cable designed for FTTH (Fiber To The Home) applications. It uses steel wire strength members for high tensile strength, combined with a low-smoke zero-halogen (LSZH) or PVC sheath to ensure safety and durability. Compact and lightweight, GJYXCH is ideal for aerial, wall-mounted, or conduit installations in the “last mile” of fiber deployment.
Key Features
-
High Tensile Strength: Two parallel steel wires provide strong support for aerial spans.
-
Multiple Core Options: Available in 1~4 cores, SM or MM fibers.
-
Durable Outer Sheath: LSZH for flame retardance and low smoke, or PVC for cost-effectiveness.
-
Weather Resistant: UV and moisture protection for outdoor installation.
-
Stable Optical Performance: High-quality fibers G.652D with low attenuation.
Applications
-
FTTH drop connections from pole to home or building
-
Indoor wall-mounted fiber installation
-
Last-mile connections in telecom networks
-
Small-scale campus or office network distribution
Technical Specifications
| Parameter | Specification |
|---|---|
| Fiber Type | Single Mode G.652D |
| Core Count | 2 cores |
| Cable Structure | 3 Steel wire reinforced |
| Outer Sheath | LSZH or PVC, black |
| Tensile Strength | 600–1500 N (depending on core count) |
| Outer Dimension | Approx. 2.0 × 5.0 mm |
| Operating Temperature | -20°C to +70°C |
| Installation | Aerial, wall-mounted, conduit |
| Standards | ISO |
Why Choose Us
-
Experienced Manufacturer: 15+ years in fiber optic cable production.
-
Global Supply: Delivered to 60+ countries for ISP and telecom projects.
-
Customization: Core count, jacket material, and fiber type available on request.
-
Strict Quality Control: 100% optical and mechanical testing before shipment.
-
Fast Delivery: Ready stock for common models.
Packing & Delivery
-
Standard export carton or wooden drum
-
Cable length: 1km–3km per roll (custom available)
-
Shipping: By sea, air, or courier (DHL/UPS/FedEx)
