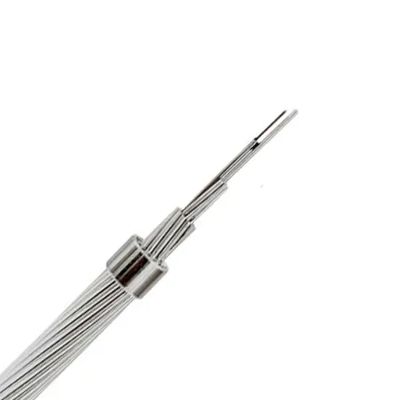

OPGW Optical Ground Wire Fiber Optical Cable 12 24 Hilos Core For Aerial Comunicacion Use
| Place of Origin | Shandong，China |
|---|---|
| Brand Name | EBOCOM |
| Certification | ISO TLC |
| Model Number | OPGW24-50[51;9] |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.32/M ≥5000m $0.3/M |
| Packaging Details | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Delivery Time | 5-8 days |
| Supply Ability | 5000MS/day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model Number | OPGW | Cable Mode | Optical Ground Wire |
|---|---|---|---|
| Cable Type | Stranded Opgw Cable | Fiber Count | 24 48 Cores |
| Fiber Type | G652D/G657A1/G657A2 | Strength Member | Steel Wire FRP |
| Key Words | Optical Fiber Cable | Application | Overhead/Aerial |
| Highlight | OPGW fiber optic cable 24 cores,aerial communication OPGW cable,OPGW optical ground wire 12 cores |
||
Product Description
Product Description:
OPGW (Optical Ground Wire) is a type of optical fiber cable used in overhead lines that performs a dual function. It protects both power lines (from lightning strikes) and high-speed data communication fibers. Located atop transmission towers, OPGW cables are crucial in today's utility communications systems.

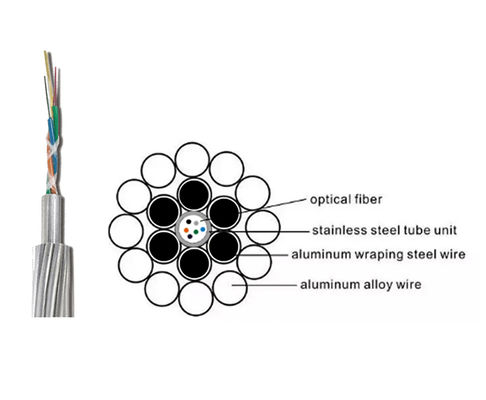

OPGW cables typically consist of the following components:
Central Fiber Unit: This consists of a single-fiber system with a stainless steel or aluminum launch tube.
Protective Tube: This is a steel tube, aluminum launch tube, or aluminum tube that encases the optical fibers.
External Strength Members: These are aluminum-coupled steel wires and aluminum alloy wires that provide mechanical support and electrical conductivity.
These materials achieve a balance between strength, electrical conductivity, and optical safety.
Main features:
Dual-Purpose: Combining grounding and communications functions in one cable reduces the need for separate cables and lowers overall installation costs.
Lower Installation Cost: The per-kilometer installation cost is lower than buried fiber optic cable.
Easy Installation: It can be installed over existing power lines without shutting down the power, as it can be laid while energized.
No Increase in Tower Load: Its diameter and weight are similar to those of traditional grounding wires, so it does not impose additional mechanical loads on the tower.
Electrical Fault Resistance: Provides a safe path for fault currents and lightning strikes, protecting optical fibers from damage.
Environmental Resistance: Fiber is protected by a durable, sealed metal sheath, effectively withstanding various environmental factors.
High-Capacity Data Transmission: Supports high-speed, long-distance data, voice, and video communications.
High Signal Quality: Low attenuation and signal loss ensure reliable data transmission.
Power Grid and Smart Grid Applications: Improves grid operations: Enables real-time monitoring, fault location, and control of the grid, improving efficiency and reliability.
Smart Grid Compatibility: Supports advanced features such as remote monitoring and automated control systems.
Future-Ready: Fiber optics can meet current and future communication needs, making the grid more adaptable to new technologies.
Structure & Technical Specifications:
