OPGW 48 Core G652D 90mm² Cross-Section Fiber Optic Cable Double Stainless Steel Tube Stranded
The OPGW 48 Core G652D Fiber Optic Cable with a 90mm² cross-sectional area is a premium, high-capacity dual-function utility cable engineered for modern electrical grids and smart infrastructure upgrades. Designed with a stranded layer structure incorporating double stainless steel tubes, this heavy-duty Optical Ground Wire safely encapsulates 48 single-mode G.652.D fiber cores, separating them into two independent steel tubes for superior redundant data security and enhanced crush protection.
Armored with premium aluminum-clad steel (ACS) wires around the central fiber units, the 90mm² OPGW structural framework is optimized to withstand intense short-circuit currents and severe lightning strikes. It serves simultaneously as a reliable conventional grounding wire for high-voltage transmission towers and a high-speed telecommunications backbone, delivering low-attenuation performance across massive overhead spans.
- High-Voltage Transmission Lines: Installed at the topmost position of 110kV, 220kV, and 500kV power grid towers as a reliable grounding and lightning protection wire.
- Smart Grid Communication Backbones: Providing real-time monitoring, teleprotection, and high-bandwidth data routing between regional substations.
- Extreme Weather Power Corridors: Ideal for long-span river crossings and mountain power grids prone to heavy wind loads, ice accumulation, and high mechanical stress.
- System Upgrades & Retrofitting: Replacing old, conventional ground wires on existing transmission lines to instantly add fiber optic communication capabilities without increasing structural tower loads.
| Cable Feature | Technical Specification Details |
|---|---|
| Cable Model | OPGW (Optical Ground Wire) |
| Fiber Count | 48 Cores |
| Fiber Type | Singlemode G.652.D (Low Attenuation) |
| Total Cross-Sectional Area | 90 mm² |
| Fiber Unit Structure | Double Stainless Steel Tubes (Stranded Layer Design) |
| Armoring Material | Aluminum-Clad Steel (ACS) Wires |
| Nominal Outer Diameter | Approx. 13.5mm - 14.8mm (Depending on wire configurations) |
| Short-Circuit Current Capacity | Optimized for 90mm² engineering standards |
| Max Allowable Tensile Strength (MATS) | Engineered for large span sags with zero fiber strain |
| Modulus of Elasticity | High-tensile stability under severe icing/wind loads |
| Operating Temperature | -40°C to +80°C |
- Double Stainless Steel Tube Security: Dividing the 48 cores into two separate laser-welded stainless steel tubes offers dual-channel physical protection, moisture resistance, and easier mid-span fiber splicing management.
- Premium G.652.D Fiber Cores: Standardized single-mode fibers ensure exceptionally low attenuation at 1310nm and 1550nm wavelengths for long-distance grid communications.
- Robust 90mm² Cross-Section: Carefully calculated cross-sectional balance that delivers excellent fault current carrying capability while keeping the cable profile lightweight for standard tower load capacities.
- Excellent Lightning & Corrosion Defense: Heavy aluminum cladding on the steel wires shields the internal fiber optics from intense thermal spikes caused by lightning strikes and high-voltage short circuits.
With 13 years of specialized production experience, Shandong Yibo Optronics Technology Co., Ltd. manufactures utility-grade OPGW cables that comply fully with IEEE 1138 and IEC 60794 international standards.
- High-Precision Laser Welding: Our advanced production lines ensure flawless, continuous seams on the double stainless steel tubes, ensuring 100% hermetic protection against hydrogen aging.

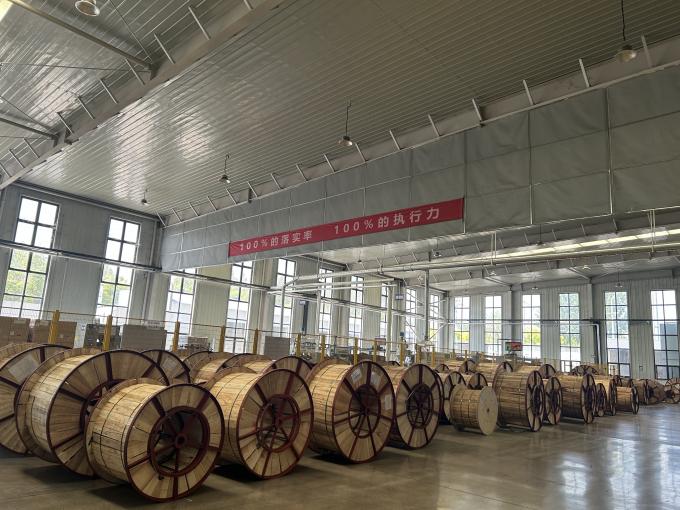

- Rigid Quality Assurance: Every production run undergoes comprehensive verification inside our independent testing center, including short-circuit current simulations, tensile pulling stress, and thermal cycling tests before being wound onto heavy-duty export reels.
