Outdoor GYTC8A/S figure 8 fiber optic cable G652D G657A1 G657A2 single mode 2 12 24 36 48 72 core steel messenger wire
G652D GYTC8A/S fiber optic cable
,Outdoor GYTC8A/S fiber optic cable

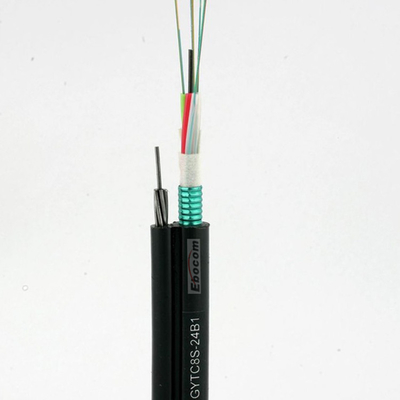

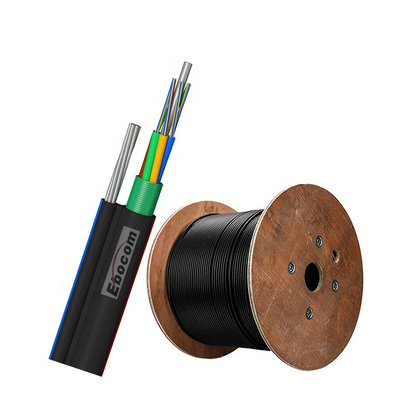

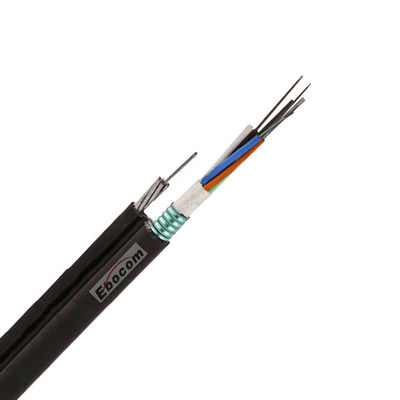

Figure eight fiber optic cable is built with the aid of using setting a single-mode or multi-mode fiber right into a free sleeve manufactured from excessive modulus plastic and full of a water-blockading compound. The middle of the middle is a metallic reinforcement middle.The unfastened tubing (and filler rope) is twisted across the middle reinforcement middle to shape a compact and spherical middle, with the gaps withinside the middle full of a water-blocking off filler. The cable core is wrapped longitudinally with steel-plastic composite tape and placed in parallel with the steel strand while squeezing the 8 letter sheath into the cable.
Main features
1. Precise manipulate of the residual period of the fiber, which guarantees that the fiber optical cable has top tensile homes and temperature characteristics;
2.Loose casing fabric itself has accurate hydrolysis resistance and excessive strength, and the tube Is packed with unique oil paste,that’s a key safety for optical fiber;
3.No need to position metallic strand while erecting, which will increase the development pace via way of means of 3-four instances and decreases the set up cost;
4.Excellentwaterproof performance
Application
Gytc8a optical cable is suitable for long-distance communication and inter office communication, such as urban fiber optic network, public broadcasting, local area network installation, etc.
Technical Parameters
|
Cable Type
|
Fiber Count
|
Number of loose tubes
|
Fillers
|
Cable diameter (mm)
|
Cable Weight
(kg/km) |
Allowable tensile force
Long/short term (N) |
The flattening force is allowed
Long/Short term(N/100mm) |
Bending radius Static/Dynamic(mm)
|
|
GYTC8A/S-2~6
|
2~6
|
1
|
4
|
9.5×18.3
|
218
|
600/1500
|
300/1000
|
10D/20D
|
|
GYTC8A/S-8~12
|
8~12
|
2
|
3
|
2000/6000
|
300/ 1000
|
600/1500
|
300/1000
|
10D/20D
|
|
GYTC8A/S-14~18
|
14~18
|
3
|
2
|
9.5×18.3
|
218
|
600/1500
|
300/1000
|
10D/20D
|
|
GYTC8A/S -20~24
|
20~24
|
4
|
1
|
9.5×18.3
|
218
|
600/1500
|
300/1000
|
10D/20D
|
|
GYTC8A/S-26~30
|
26~30
|
5
|
0
|
9.5×18.3
|
218
|
600/1500
|
300/1000
|
10D/20D
|
