GJFJV GJFJH Indoor Optic Cable 2-96 cores Single Mode G652D Distribution communication
GJFJV Indoor Optic Cable
,Single Mode Indoor Optic Cable
Description

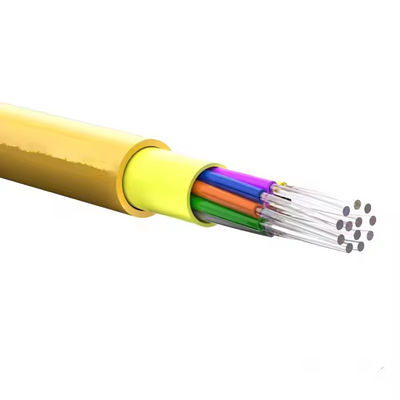

The structure of GJFJV/GJFJH optical cable adopts multiple φ900μm (single mode or multimode) flame retardant tight-buffered optical fibers as optical transmission medium, which are wrapped with a layer of aramid yarn or glass yarn as stress reinforcement unit, and covered with PVC sheath or extruded with a layer of LSZH (low smoke zero halogen) sheath.
Features
- Using tight-buffered optical fiber for easy stripping;
- Tight-buffered optical fiber has good flame retardant properties;
- Double-shaped structure sheath is easy to peel off branches and use;
- The outer sheath material has the advantages of corrosion resistance, waterproof, flame retardant, and environmental protection.
Applications
Mainly used for indoor wiring and connections between various indoor communication equipment, between equipment and instruments, and between instruments.
- Duplex optical fiber active link jumpers and pigtails;
- Indoor shaft level and forced ventilation level wiring;
- Interconnection of instruments and communication equipment.
Mechanical Specifications
| Cable Model | Outer Diameter
(mm) |
Weight
(kg/km) |
Tensile Strength(N) | Crush Resistance(N/100mm) | Bending Radius | Jacket Thickness(mm) | |||
| Long term | Short term | Long term | Short term | Dynamic | Static | ||||
| GJFJV-2F | 3.6±0.2 | 12.5 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.45±0.05 |
| GJFJV-4F | 4.7±0.2 | 17.6 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.8±0.1 |
| GJFJV-6F | 5.2±0.2 | 22.8 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.9±0.1 |
| GJFJV-8F | 5.8±0.2 | 26.7 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.9±0.1 |
| GJFJV-12F | 6.3±0.2 | 32.7 | 180 | 440 | 300 | 1000 | 20D | 10D | 0.9±0.1 |
| GJFJV-24F | 8.0±0.2 | 53 | 200 | 660 | 300 | 1000 | 20D | 10D | 1.0±0.1 |
