Product Description

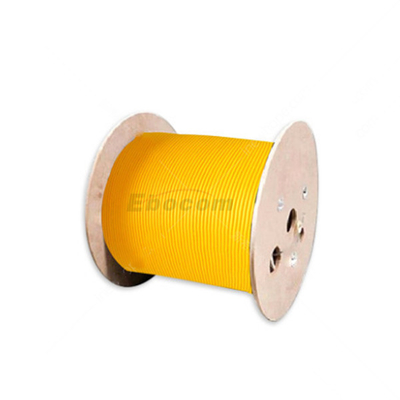

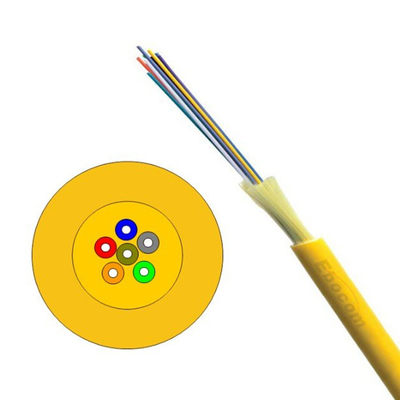

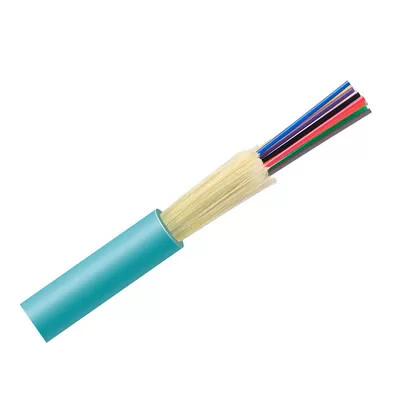

The GJFJV Indoor Fiber Optic Cable is a premium-quality, tight-buffered optical cable with a PVC outer sheath, designed for reliable and high-speed data transmission in indoor network environments. It features tight-buffered single-mode (G652D/G657A1/G657A2) or multimode (OM1/OM2/OM3/OM4) optical fibers, reinforced with aramid yarn (Kevlar) or polyester yarn for added tensile strength and flexibility. With fiber counts ranging from 2 to 48 cores, this cable is widely used in FTTH, LAN, enterprise networks, data centers, and building cabling.
Key Features
**Durable PVC Outer Jacket – Provides excellent mechanical protection and resistance to environmental factors.

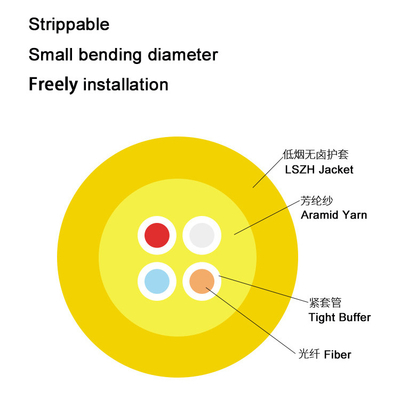

**Tight Buffered Structure – Ensures superior fiber protection and easy termination.
**Flexible & Easy to Install – Lightweight and suitable for indoor structured cabling.
**Multiple Fiber Options – Available in single-mode and multimode to support different network applications.
**High Tensile Strength – Reinforced with aramid yarn or polyester yarn for reliability and durability.
**Cost-Effective Solution – Ideal for a wide range of indoor fiber optic communication networks.
Applications
1.FTTH (Fiber to the Home) and FTTx Networks
2.Indoor Backbone Cabling & Structured Wiring
3.LAN & WAN Communication Systems
4.Enterprise & Data Center Networks
5.Security & Surveillance Fiber Cabling
6. Broadcast & Multimedia Fiber Infrastructure
Technical Specifications
| Parameter | Specification |
|---|---|
| Cable Type | GJFJV Indoor Fiber Optic Cable |
| Fiber Type | Single Mode (G652D/G657A1/G657A2) / Multimode (OM1/OM2/OM3/OM4) |
| Fiber Count | 2-48 cores |
| Buffer Type | Tight Buffered |
| Strength Member | Aramid Yarn / Polyester Yarn |
| Outer Sheath Material | PVC (Polyvinyl Chloride) |
| Cable Diameter | Varies by fiber count |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Tensile Strength | High mechanical durability |
| Fire Performance | Flame-retardant PVC material |
| Installation Type | Indoor structured cabling, horizontal and vertical wiring |
The GJFJV indoor fiber optic cable is manufactured following international standards, ensuring compliance with ISO, CE, and RoHS certifications. It is an ideal choice for high-performance, cost-effective, and flexible indoor fiber cabling solutions.
Contact us today to get a customized solution for your fiber optic network needs!
