Outdoor Armored GYXTW Optic Fiber Cable Single Mode 2-24 Core G652D duct construction
Single Mode GYXTW Optic Fiber Cable
,Outdoor Armored GYXTW Optic Fiber Cable

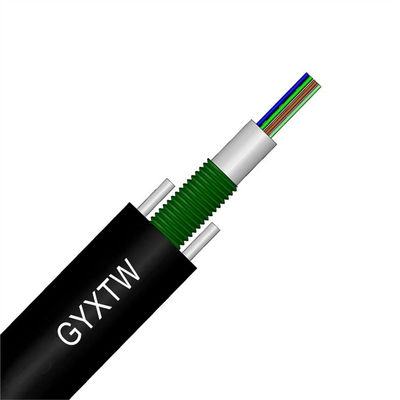

Armored single tube single-sheathed/single-armored optical cable, the optical fiber is placed in a loose buffer tube. The cable core is protected by corrugated steel tape armouring and covered with a black polyethylene sheath. Two embedded steel wires provide the required tension.
Product structure:
Fiber: 2-24 fiber
Single loose tube gel filling
Armouring: corrugated steel tape
Reinforcement: embedded steel wire
Jacket: black UV and moisture resistant polyethylene (PE).
Features:
The single tube gel-filled structure provides superior fiber protection.
CST armor protects cables from rodent attacks and mechanical damage.
The embedded wire provides ideal tensile and compressive strength.
Compact and easy to install.
UV and moisture-proof design
Application field:
Installed in the pipe, buried directly.
Fiber to the home.
Optical Characteristics:
| Fiber Type | G.652 | G.655 | 50/125^m | 62.5/125^m | |
| Attenuation
(+20X) |
850 nm | <3.0 dB/km | <3.3 dB/km | ||
| 1300 nm | <1.0 dB/km | <1.0 dB/km | |||
| 1310 nm | <0.36 dB/km | <0.40 dB/km | |||
| 1550 nm | <0.22 dB/km | <0.23 dB/km | |||
| Bandwidth | 850 nm | >500 MHz-km | >200 Mhz-km | ||
| 1300 nm | >500 MHz-km | >500 Mhz-km | |||
| Numerical Aperture | 0.200±0.015 NA | 0.275±0.015 NA | |||
| Cable Cut-off Wavelength cc | <1260 nm | <1450 nm | |||
