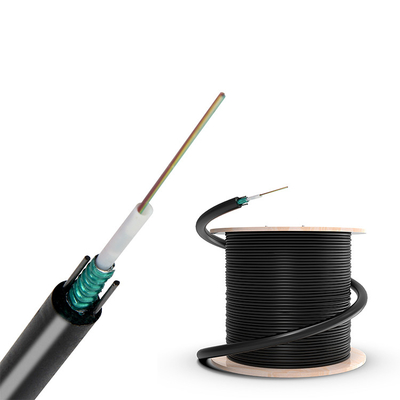

Low loss GYXTW Optical Fiber Cable 12 24 core G652D for aerial and duct laying
Duct laying GYXTW Optical Fiber Cable
,Low loss GYXTW Optical Fiber Cable
Description:
This type of cable is suitable for outdoor use in piping and overhead applications. Center tube type construction, we offer GYXTW from 2 to 12 core fiber. There are single mode and multi-mode types to choose from.
Features:
- Good tensile strength and compressive strength.
- Patience.
- Good moisture, water resistance, flexibility.
- Double wire as reinforcement provides excellent strain performance.
Applications:
- Suitable for network access.
- LAN network.
- Overhead and pipeline applications.
- Metropolitan Area Network.

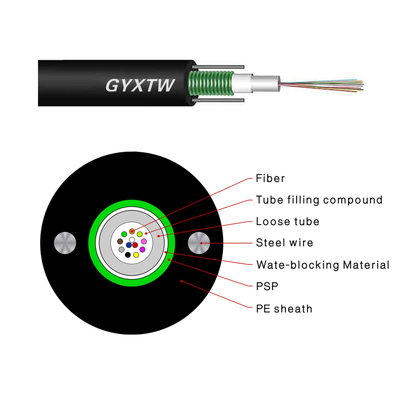

Structure and Technical Specifications:
| Fiber Count | 2-8 | 10-12 | 14-24 | |
| Diameter of steel wire(mm) | 1.0 | |||
| Diameter of Loose tube(mm) | 2.0 | 2.4 | 2.8 | |
| Diameter of Cable(mm) | 8.1 | 8.3 | 8.7 | |
| Gross weight(Kg/Km) | 74 | 75 | 87 | |
| Min. bending radius | Static 10xD Dynamic 20xD | |||
| Max. tensile force, N | Short term/ Long term 1500N/600N | |||
| Max Crush Resistance(N/100mm) | Short term/ Long term 1000N/300N | |||
| Allowable Temperatures | operation | -40°C – +60°C | ||
| storage | -50°C – +70°C | |||
| install. | -20°C – +50°C | |||
Company Profile:
Shandong Yibo Optronics Technology Co., Ltd. (Ebocom®), established in 2012, is located in the beautiful spring city
of Jinan, covering an area of 26,600 ㎡ . It is a high-tech enterprise focusing on the research and development, production, sales and service of optical cables and communication equipment. Ebocom® is committed to the research, development and application of optical cable products and communication
products. Our products include various types of optical cables (outdoor/indoor optical cables, ADSS, OPGW, mining
cables, FTTH drop cables, patch cord and pigtails) as well as optical cable-related connectors, accessories and
equipment. Widely used in telecom operators, data centers, enterprise networks and other communication
infrastructure fields. The products strictly implement national standards and have obtained ISO9001, ISO14001, ISO45001, ISO50001, TLC certification, and National Radio and Television Administration network access certification. It also has 3 invention patents and 27 utility model patents. Ebocom® focus on R&D innovation and constantly pursue advancement in technology to meet the changing needs
of our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc.
