Outdoor GYXTW Optical Fiber Cable 2-24 core G652D PE jacket for Duct Aerial Wholesale Price
24 core GYXTW Optical Fiber Cable
,24 core Outdoor Fiber Optic Cable
Description:

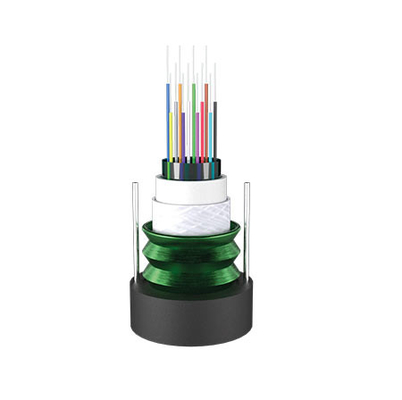

GYXTW armoured cable, single mode/multi-mode fiber is placed in a loose tube made of a high modulus plastic material filled with filler. Apply PSP longitudinally around the loose casing, and distribute water blocking material in the gap between the loose casing to ensure the tightness of the loose casing and the longitudinal water blocking performance. Two parallel steel wires are placed on each side of the cable core, and PE sheath is squeezed.
Applications:
- Outdoor distribution
- Suitable for direct burial method
- Long distance and LAN communication
- Used outdoor wiring
Features:
- Special tube filling compounds ensure critical protection of the fiber
- Compression resistance and flexibility
- PSP enhances moisture resistance
- Two parallel steel wires ensure tensile strength
- PE sheath has excellent anti-ultraviolet performance
- Small diameter, light weight, easy installation
- Long delivery length
Mechanical & Environmental Characteristics:
| ITEM | Value |
| Max. Tensile Load (Short Term) | 2000N |
| Max. Tensile Load (Long Term) | 1000N |
| Max. Crush Load (Short Term) | 1000N/100mm |
| Max Crush Load (Long Term) | 300N/100mm |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Sheath Material | Standard: PE Optional: LSZH or other |
