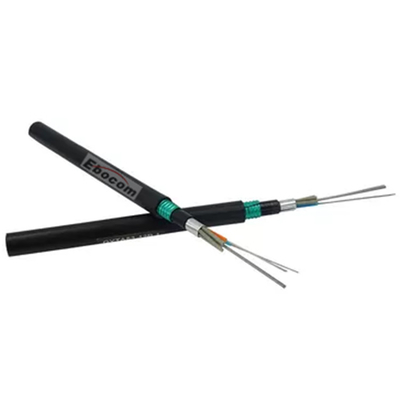

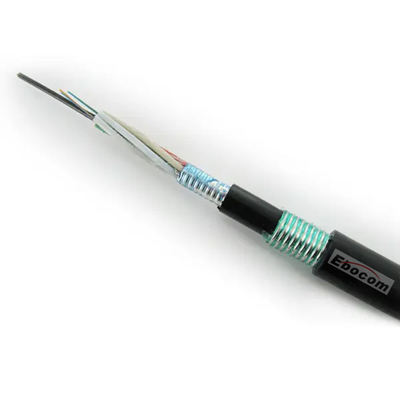

GYTS53 Direct Buried Optical Cable 48 core Layer-Stranded LAN communication
| Place of Origin | Shandong，China |
|---|---|
| Brand Name | EBOCOM |
| Certification | ISO |
| Model Number | GYTS53 |
| Minimum Order Quantity | 2000M |
| Price | EXW ≥2000m $0.32/M ≥5000m $0.3/M |
| Packaging Details | 1. Iron-wooden drum or non-fumigation wooden drum,normal wooden drum. 2. Drum size can be designed,details will calculation for suitable for containers. |
| Payment Terms | T/T |
| Supply Ability | 5000KMS/day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cable Model | GYTS53 | Core | 2-144 |
|---|---|---|---|
| Brand | Ebocom | Fiber Type | G652D, G657, Om1 Om2 Om3 Om4 |
| Armored | Corrugated Steel Tape/Aluminium Tape |
Product Description
Fiber optic cable Application:
- Outdoor distribution
- Suitable for direct burial method
- Long distance and LAN communication
- Used outdoor wiring
Optical fiber cable features:
- good mechanical properties and temperature properties
- High strength loose sleeve, resistant to hydrolysis
- Special tube filling compounds ensure critical protection of the fiber
- Compression resistance and flexibility
- Take the following measures to ensure that the cable is watertight
- Loose casing filler, 100% cable core filling
- Strengthen moisture
- Water blocking materials
Specifications:
|
Fiber Count |
Cable Diameter (mm) |
Cable Weight |
Bending Radius (mm) |
Tensile Strength (N) |
Crush Resistance (N/100mm) |
|||
| Static | Dynamic | Short Term | Long Term | Short Term | Long Term | |||
| 32-36 | 9.1 | 84 | 10D | 20D |
1500 |
600 |
1000 |
300 |
| 37-60 | 9.4 | 85 | 10D | 20D | ||||
| 62-72 | 10.1 | 105 | 10D | 20D | ||||
| 74-96 | 11.4 | 121 | 10D | 20D | ||||
| 98-108 | 12.0 | 132 | 10D | 20D | ||||
| 110-120 | 12.6 | 143 | 10D | 20D | ||||
| 122-132 | 13.4 | 158 | 10D | 20D | ||||
| 134-144 | 14.2 | 175 | 10D | 20D | ||||
Company Profile:
Shandong Yibo Optronics Technology Co., Ltd. (Ebocom®), established in 2012, is located in the beautiful spring city
of Jinan, covering an area of 26,600 ㎡ . It is a high-tech enterprise focusing on the research and development, production, sales and service of optical cables and communication equipment. Ebocom® is committed to the research, development and application of optical cable products and communication
products. Our products include various types of optical cables (outdoor/indoor optical cables, ADSS, OPGW, mining
cables, FTTH drop cables, patch cord and pigtails) as well as optical cable-related connectors, accessories and
equipment. Widely used in telecom operators, data centers, enterprise networks and other communication
infrastructure fields. The products strictly implement national standards and have obtained ISO9001, ISO14001, ISO45001, ISO50001, TLC certification, and National Radio and Television Administration network access certification. It also has 3 invention patents and 27 utility model patents. Ebocom® focus on R&D innovation and constantly pursue advancement in technology to meet the changing needs
of our customers. The company actively introduces advanced foreign production equipment and inspection equipment (optical fiber coloring equipment, secondary coating equipment, OPGW unit tube production equipment, precision optical fiber detectors), and absorbs advanced domestic and foreign process technology to ensure the high quality and quality of products. reliability. In order to further ensure product quality, the company has established a strict management system and checks every step of the production process at all levels. Over more than ten years of continuous innovation and development, Ebocom® has won many honors, such as "High-tech Enterprise", "Gazelle Enterprise", "Specialized Special New specialized and sophisticated Enterprise", Shandong Province Excellent Management Innovation Enterprise", "AAA Credit Unit" , "Contract-abiding and Credit-worthy Unit", etc.
